Dkl fl 90 crimping dn6 1 2sn m14x1 5 x10 hydrolider

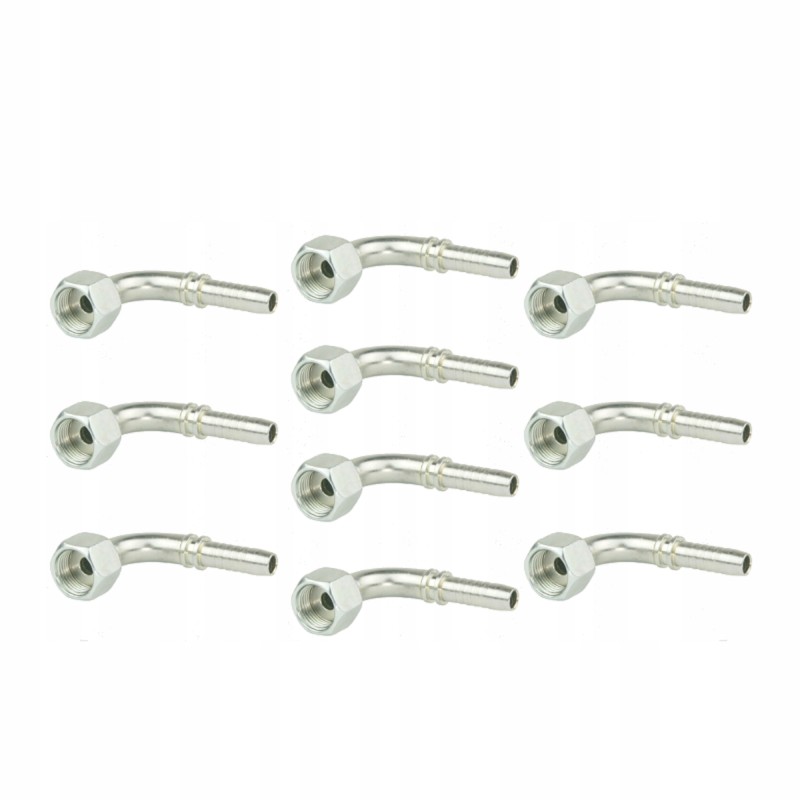

ANGLE HYDRAULIC FITTING DKL-FL 90 14x1.5 FOR HYDRAULIC HOSE 1SN / 2SN DN6 SET OF 10 PIECES Production:

Hydrolider, symbol: 4.20.06.015.10

Application:

The fitting is used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry . Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN6 group with single and double braiding. Fits sleeves from the DN6 group with the marking 1SN and 2SN.

Technical data:

90° angle fitting with sealing in a flat, frontal system. Metric thread tip 14x1.5, light version, made according to the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - thickness minimum 8µm

Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our forging elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range : -40°C to 100°C

Recommended hydraulic hose: DN6 1SN, DN6 2SN or other with an internal diameter of 6 mm

Made in Poland for Agricola Hydraulic Component
