Hydraulic connector nipple bb m18x1 5 bsp g3 8

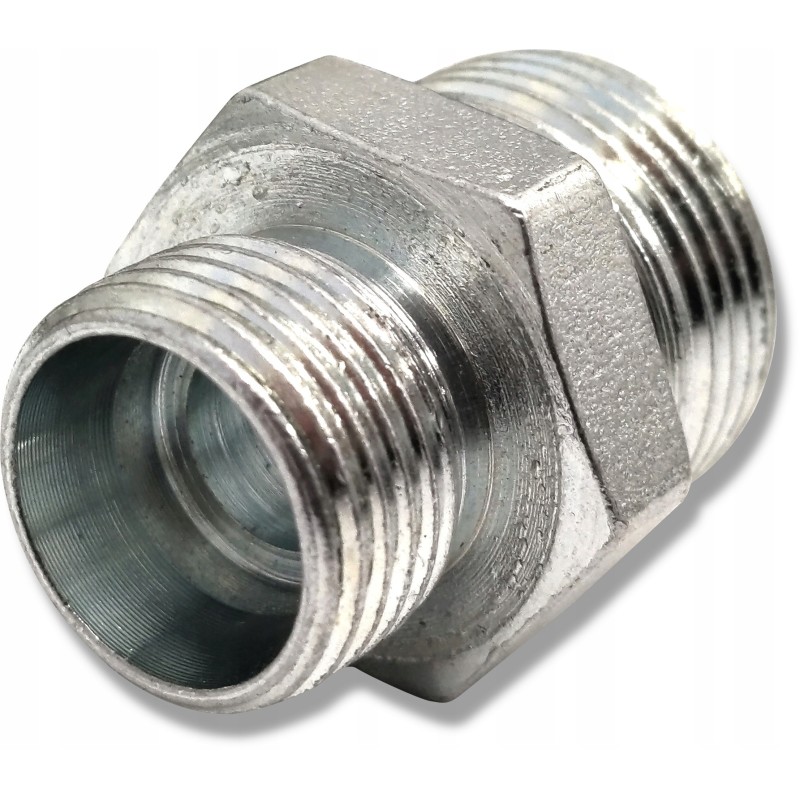

Straight hydraulic connector - nipple M18x1.5 - G3/8''SKRAW MET CODE: [2978]Manufacturer: SM-G (SKRAW MET GROUP)Connector in a standardized light version with a self-sealing cone when tightened.

Due to the lack of a rubber ED seal and no space for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. This is done using connectors that can be purchased at our other auctions.

Application: The connector is designed to connect two wires or to be connected to other connectors with the same sealing cone.

Perfectly checks used in hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and the broadly understood industry.

Technical specifications: Clamping cone angle: 24° (typical for Polish standard)

Total length: 31mm

Spanner: 22 mm

Nominal diameter of the passage: 7.5 mm

G1 thread : external metric M18x1.5

G2 thread: external inch G3/8'

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Connector version: light

Material: weldable steel, galvanized, corrosion-resistant
