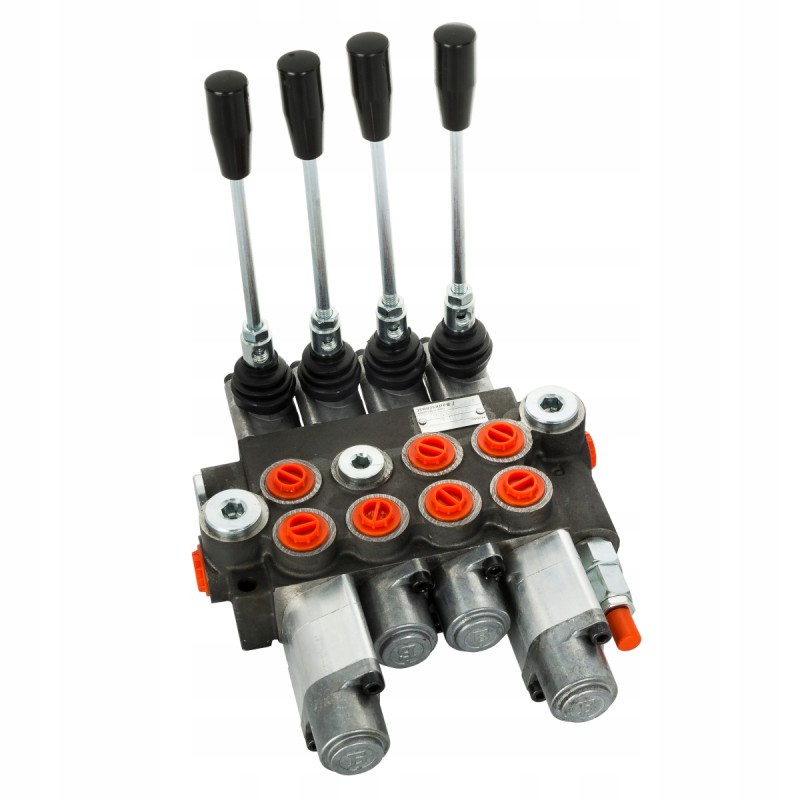

Hydraulic distributor 40l, 4 sections, 2p, 1d, 1j

4-section hydraulic distributor 40l 2p 1d 1j MIZAR number: 67937

4-section hydraulic distributor 40l 2p 1d 1j

The distributor is adapted to various types of machines such as: agricultural machines, tractors , sprayers, tourers, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

A wide range of spare parts for the distributor and their availability enable trouble-free service and the need for further modifications or expansion of the system.

► It is equipped with four sections:

2 x floating

1 x single-sided< p>

1 x double-sided

This allows the divider to be widely used with various machines. The undoubted advantage of the floating section is the possibility of cooperation with both double-acting cylinders (folding harrows, reversible plows, etc.) and single-acting cylinders (tipping cylinders, hydraulic lifters, etc.).

► The floating section has 4 positions:

1 - actuator advance

0 - distributor in neutral position,

2 - return of the double-sided actuator

3 - lowering of the single-sided actuator (in the case of a double-sided actuator - this position allows it to 'float', which is used e.g. in snow plows)

In the floating position - 3 - the section has a latch that holds the distributor lever in this position (so-called free flow)

► Technical information:

Ambient temperature range: -40C...+60C

Oil temperature range: -15C...+80C

Performance: 40L/ min

Internal threads in the body:

Supply connection port: 1/2''

Return connection port: 1/2''

Connection ports sections: 3/8''

► PRESSURE RANGE:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar< p>

Maximum pressure on sections: 300Bar

Overflow valve factory set to 175Bar

MIZAR number: 67937
