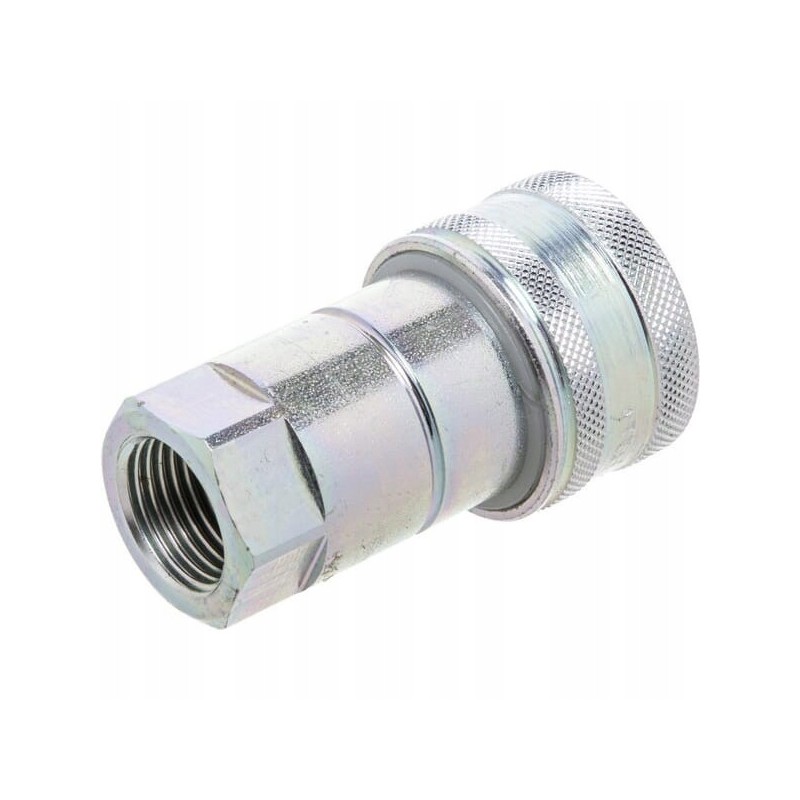

Quick connector 1 2 bsp ig

1/2 BSP IG quick connector INDEX: NS12GASF

Material: Carbon steel

Features: - With ball valve - Axial actuation of the locking sleeve towards the rear (single-sided action) - Without breaking function

Valve type: Ball

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Technology municipal - Viticulture - Mineral oil based fluids

Size: 12.5 mm

Outer diameter: 44 mm

ISO standard: 7241

Series: NS

Connection thread diameter: 1/2 inch

Connection diameter: 38 mm

Surface treatment: White passivated

Connector thread type: BSP

Total length: 92mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 261.1g

Working pressure: 200BAR

Connector type no. 2 - male/female: Female

Possibility to connect under pressure: No

Max operating temperature: 125°C

Min operating temperature: -35°C

Quick connector lock type: Balls around the circumference

Connection method: Sleeve offset

Disconnection method: Sleeve offset

Type of connector no. 2: Thread

Diameter connection thread no. 2: 1/2 inch

Size (code): BG 3

Connection thread type no. 2: BSPP

Number of turns per inch of connector no. 2 thread: 14

Flow at 2 bar pressure: 50l/min

Connection type no. 1 : Quick Connector

No.1 Connector Type - Male/Female: Female

No.1 Connector Wrench Size: 27mm
