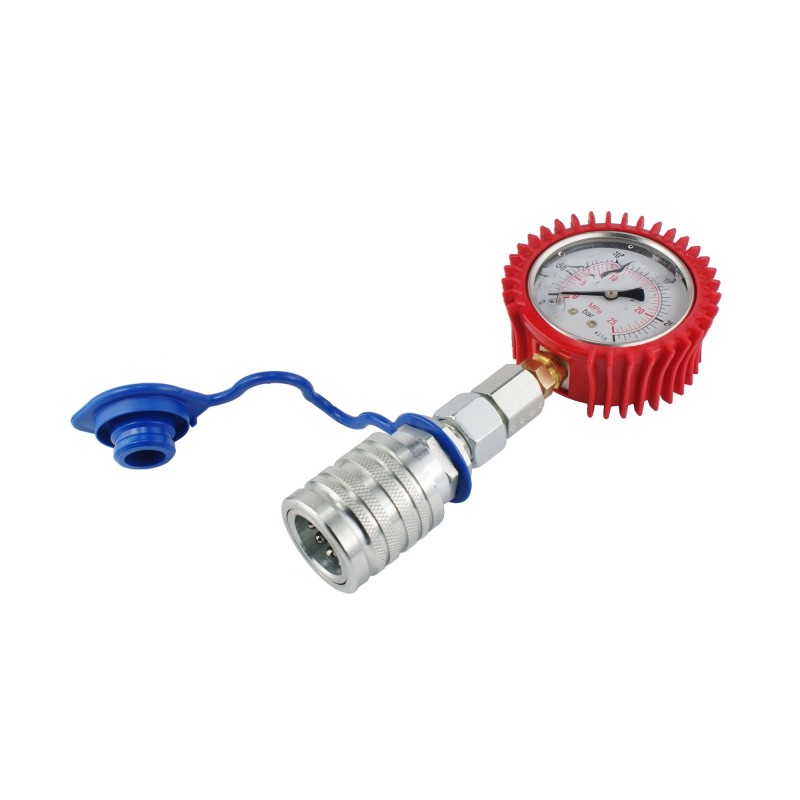

Pressure gauge with 63mm euro socket, 160bar hydrolider

MEASURING SET FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH QUICK CONNECTOR WITH EURO SOCKET PRESSURE MEASURING RANGE: 0-160 BAR (MANOM PREVIEW PHOTO. WE SEND WITH SCALE AS IN DESCRIPTION)

Set components:

Pressure gauge

Pressure gauge cover

Connect e pressure gauge

Quick connector euro socket

Quick connector cover

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.314.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Set prepared for connection to any hydraulic line capable of generating pressure. Designed to measure oil pressure in closed hydraulic systems. The pressure gauge is filled with glycerine inside, so the measurement is accurate despite shocks and vibrations. It has a plug to equalize the pressure inside the manometer with atmospheric pressure.

Technical data:

Pressure measurement range: 0-160 Bar

Outer diameter of the clock: 63 mm

Clock connection port thread [BSP]: 1/4'

Operating temperature [°C ]: -10 to +50

Accuracy class: 1.6

Euro socket quick connector, ISO standard

Material:

Housing: steel

Viewfinder: glass

(MANOM REVIEW PHOTO. WE SEND WITH SCALE AS IN DESCRIPTION)
