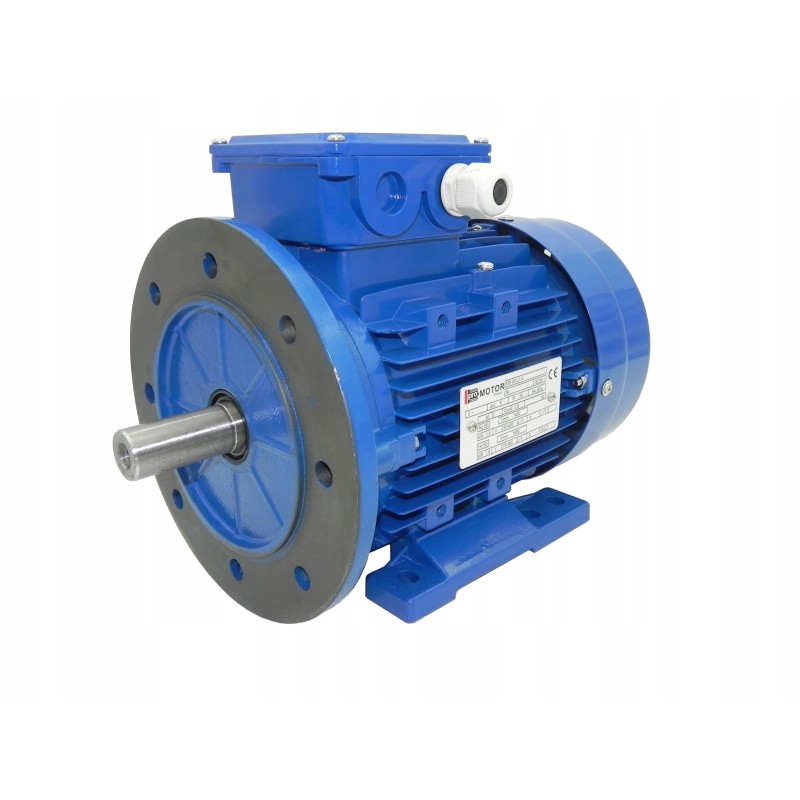

Electric motor B35 4 0 kW 400v 1430 rpm shaft 28

3-PHASE ELECTRIC MOTOR 400V/690V 4.0kW FLANGE-PAW B35Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Motors general purpose, adapted for continuous operation in industry and agriculture. In hydraulic systems, used to drive pumps. In mechanical systems, to put other system elements into rotation.

It is possible to install external cooling or a handbrake on the engines.

Type: MS 100 L3-4 B35

Power kW: 4

Power HP: 5.5

Rotation speed /min: 1430

Voltage: 400/690V

Disconnector (circuit breaker): 0-1 or 0-Y-Δ (3-pole)

Weight kg: 29

Terminal box position: top

Housing: aluminum

Shaft axis diameter mm: 28

Mechanical size: 100

Type of operation: S-1 continuous

Insulation class : F

Protection level: IP55

Our offer includes most types of hydraulic motors as well as the entire range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue VAT23%

We invite you to cooperate
