Adk komatsu forging dn8 1 2sn m16 x10 hydrolider

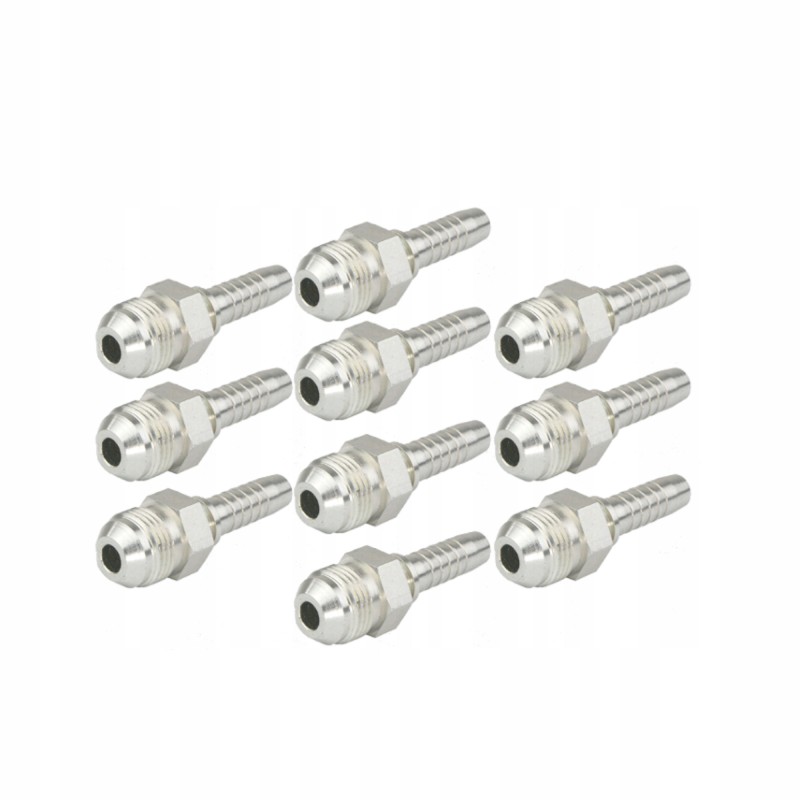

HYDRA CHANGE. STRAIGHT ADK-KOMATSU M16x1.5 FOR HYDRAULIC HOSE 1SN / 2SN DN8 SET OF 10 PIECES Production:

Hydrolider, symbol: 4.34.08.017.10

Application:

Fitting used in the production of hydraulic hoses, widely used in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN8 group with single and double braiding. Fits sleeves from the DN8 group with the marking 1SN and 2SN.

Technical data:

Straight fitting, tip with metric external thread 16x1.5, light version with external (reverse) cone of 60°. Made in accordance with the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm

Type A chromate passivation, free from chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our forging elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN8 1SN, DN8 2SN or other with an internal diameter of 8mm

Made in Poland for Agricola Hydraulic Component
