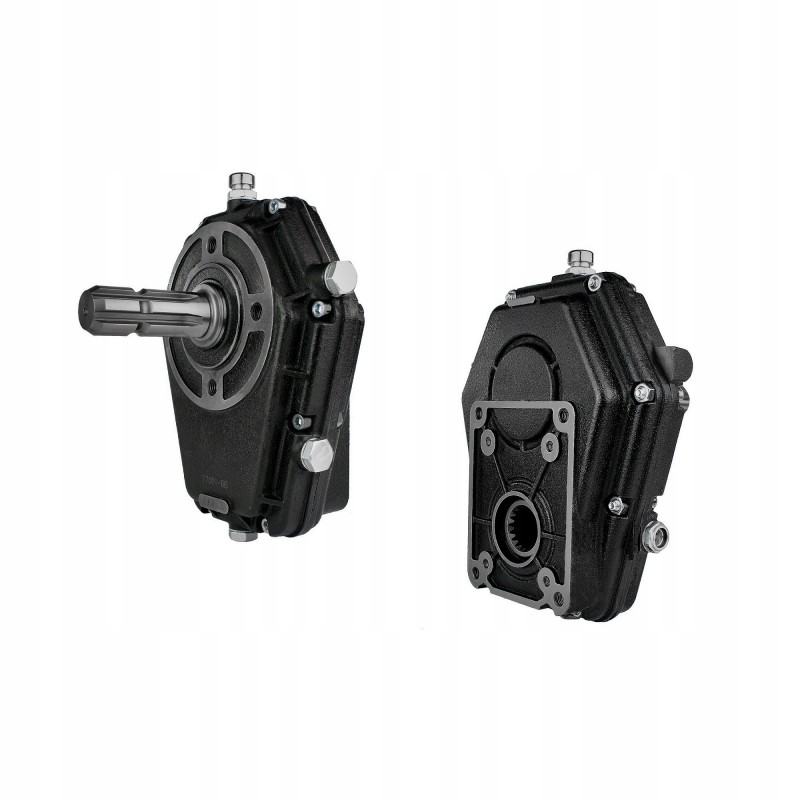

Multiplier 30kw 1 3 8 in gr2 gr3 hydrolider

REINFORCED CAST IRON MULTIPLIER TRANSMISSION 1:3.8 WITH PROJECTING PTO SHAFT Production:

Original product of the Hydrolider brand, symbol: 1.45.10.028

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The gearbox is ideal for driving hydraulic pumps of groups 2 (20) and 3 (30) with a European-type flange. Designed to work in forestry and construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF and others with PTO output.

Why reinforced?:

The cast iron multiplier is an ideal alternative to aluminum gears that are 30% weaker. Reinforced structure allows for long-term and continuous operation under heavy load and high pressures, mainly in forestry and construction.

Technical data of the gearbox:

The gearbox has a protruding PTO shaft, this solution allows the gearbox to be driven various types of cardan or relay shafts.

This solution allows the transmission to be mounted further from the tractor or other PTO drive source and mounted directly on the machine.

Pump mounting: 4 holes, GR20 spacing: 71 ,5x96.2 or GR30: 98x128

Pump centering flange diameter: 36.5mm or 50.8mm

Pump shaft type: conical 1:8

Transmission ratio multiplier: 1:3.8

Multiplier power: 30kW

The gear shaft fits the PTO socket: PTO standard 1.3/8' DIN9611

Maximum input speed : max 540 rpm

Maximum output speed: max 2052 rpm

It has a viewfinder to check the gear oil level

Material: body - cast iron, gears - steel

Requires filling with gear oil.

When used for the first time, to increase the durability of the gear, it is recommended to change the oil after the first 50 operating hours.

Integration:

Additional modules and accessories needed when creating new hydraulic systems on machines and tractors, available at other auctions (photo):
