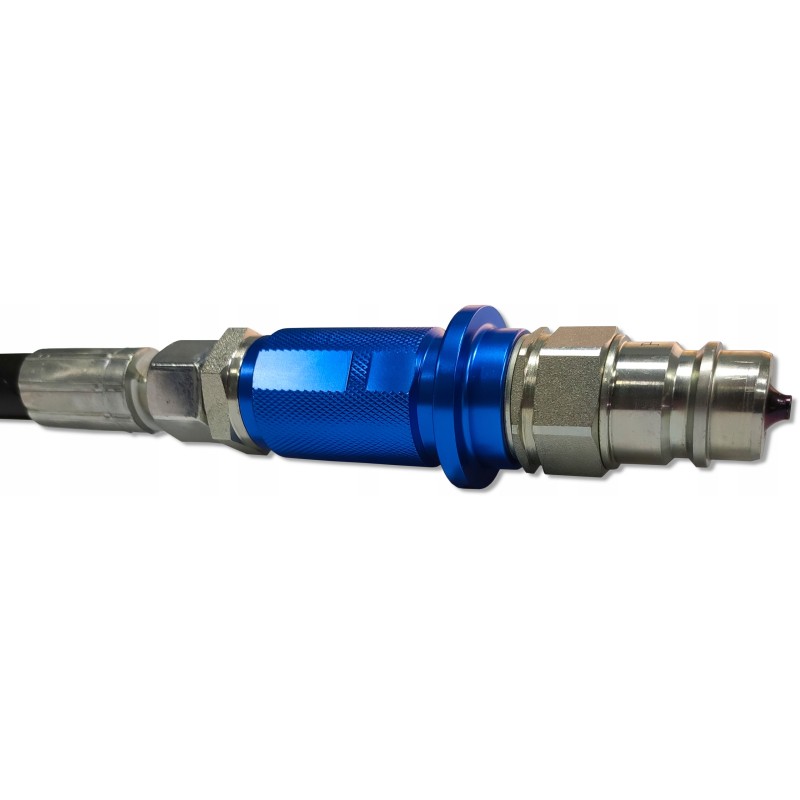

Quick connector, Euro plug M18, hose marker 1 2

EURO PLUG M18x1.5 + WASHER WITH BLUE MARK AND M18 NIPPLE FOR G1/2 HYDRAULIC HOSE SKRAW-MET CODE: [8329]EURO quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system.

Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Aluminum marker (blue) allows for aesthetic marking of individual hydraulic lines.

The set includes: Hydraulic quick connector, EURO plug, M18x1.5 thread

Aluminum marker (BLUE) G1/2' - M18x1.5

Nipple with O-ring G1/2' - M18x1.5

M18 washer

THE SET DOES NOT INCLUDE A HYDRAULIC HOSE. Application: The set is perfect for machines and devices hydraulically powered.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications of the EURO connector: External thread: 18x1.5

Type of quick connector: euro ISO standard

Type of quick connector: plug

Thread type: short, external

Material: welded steel, galvanized, corrosion-resistant

Technical specifications of the tag: Inch internal thread (on the left side of the tag): G1/2'

Metric internal thread (on the right side of the tag): M18x1.5

Total length: 63 mm

External width: 29mm

External width of the collar: 39 mm

Material: aluminum

Technical specifications of the nipple: Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 34.5 mm

Nominal diameter of the passage: 10 mm

G1 thread on the side body: external inch 1/2'

M2 thread on the cable side: external metric 18x1.5

Connection version: light

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

1CB-18-08WD

Material: weldable, galvanized steel, corrosion-resistant

Technical specifications of the washer: Fits external thread diameter in the range of 17.6 - 18 mm

Dimensions of the washer: internal diameter: 18.7 mm

external diameter: 26 mm

thickness: 1.5 mm

Material: metal and gum
