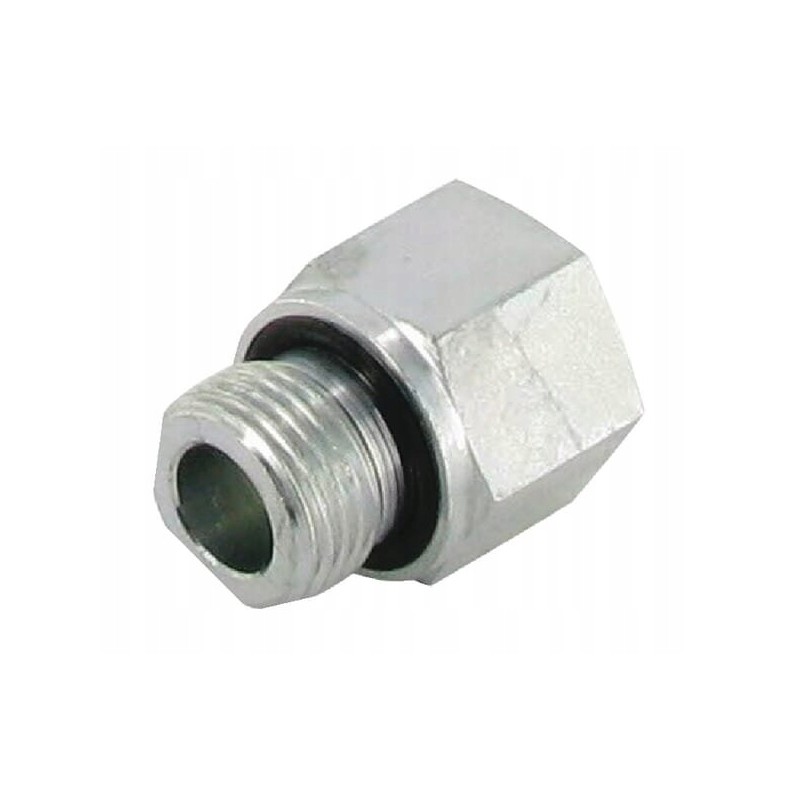

Reducing connector female internal thread 1 2 x3 8

Reducing connector male/female thread 1/2'x3/8' BSP with gasket Parameters

Part number: REDR1238WD

Unit: piece

Manufacturer: Voss

Shape: Straight - 2 sides

Connector No. 1 type - male/female: Female

Connector No. 1 thread diameter [B]: 3/8 inch

Inner diameter: 12 mm

Material: Steel

Surface treatment: Zinc, Nickel-plated

Max working pressure: 630 BAR

Length of joint no. 1 [L2]: 17 mm

Seal type on the thread side: F

Seal material: Nitrile rubber [NBR]

Torque tightening max.: 150 N m

Wrench size for connector no. 1 [L1]: 26.9 mm

Wrench size for connector no. 1 [SW]: 27 mm

Connector No. 1 Thread Type: BSP

Connector No. 2 Male/Female Thread Type: Male

Connector No. 2 Thread Diameter [A]: 1/2 inch

Connector No. 2 thread length [A]: 17 mm

Connector No. 2 thread type [A]: BSP

Connector No. 2 wrench size: 27 mm< p>

DIN standard: 228

ISO standard: 228

Total length: 37.5 mm

Connection: BSP external thread / Internal thread BSP

Technical information

- Stainless steel version available on request

- Viton gasket available on request
