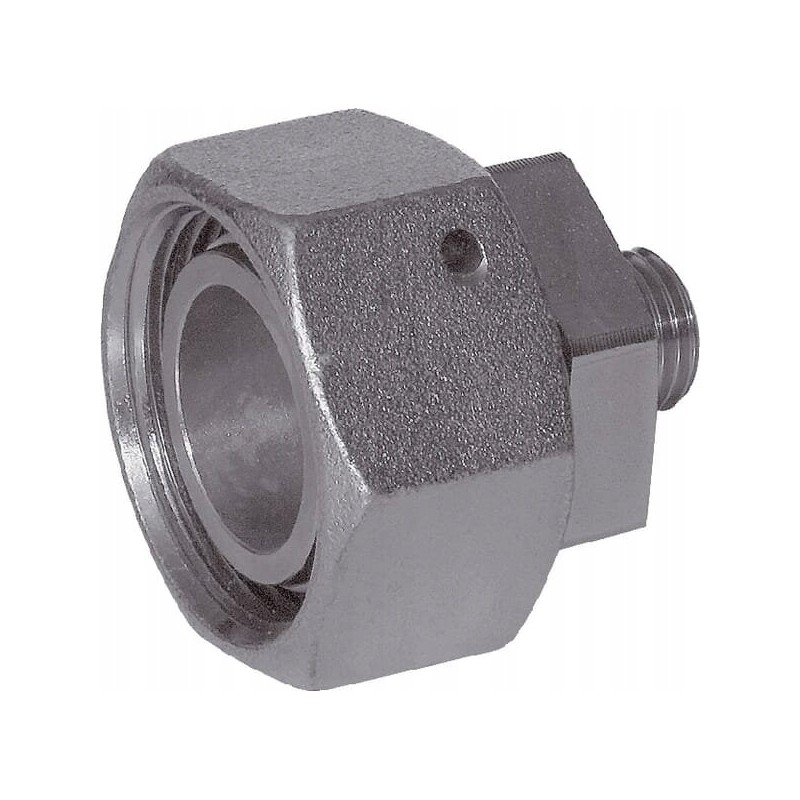

Straight connector with nut m24x1 5 16s m18x1 5 10s

Straight connector with nut M24x1.5 16S - M18x1.5 10S Parameters

Part number: REDSD1610S

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type no. 1 - male/female: Female

Connector thread diameter no. 1: M24

Inner diameter: 7 mm

Max working pressure: 630 BAR

Thread pitch of connector no. 1: 1.5 mm

Series: S

Connector #1 Wrench Size: 22mm

Connector #2 Type - Male/Female: Male

Thread Diameter Connector No. 2: M18

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size: 30 mm

Length: 31.5 mm

L1: 31.5 mm

pipe Ø D1 (mm): 16 mm

Ø pipe D2 (mm): 10 mm

Pressure: PN (nominal pressure) and Temperature acc. to DIN 2401. BAR

S3: 30 mm

Wrench opening [S1]: 22 mm

Wrench opening, other end [S2]: 22 mm< p>

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Viton gasket available on request< p>

Pipe diameter

- 16 mm

- 10 mm

L2

- 47.5 mm

- 47.5 mm
