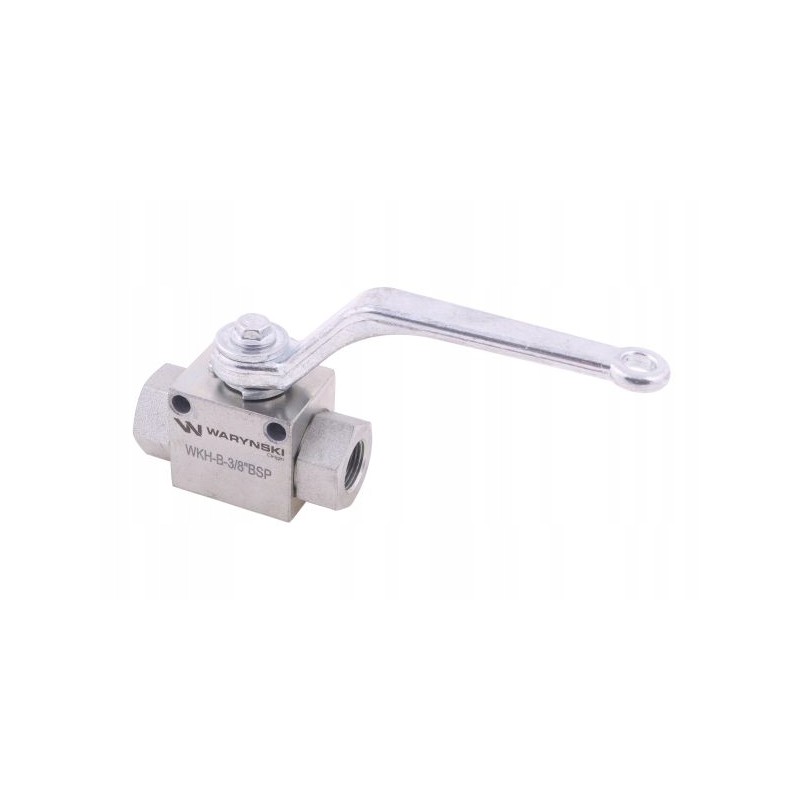

2-way hydraulic ball valve 2 2 3 8 positions

2-WAY HYDRAULIC BALL VALVE 2/2 - 3/8' BSP WITH MOUNTING HOLES 500 BAR WARYŃSKI2-way hydraulic ball valve 2/2 - 3/8' BSP with mounting holes 500 bar Waryński.

The task of this type of valves is to close and open the flow in the hydraulic system, even at high pressure. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions in agricultural and construction machines.

* Thread: Internal 3/8'

* Type: 2-way ball valve 2/2

* Cone - thread: BSP

* Max. working pressure: 50.0 Mpa / 500 bar * Operating temperature: from -20°C to +120°C

* Spacing of mounting holes: 32 mm * Material: Steel (body)

* Product code: WKH-B-3/8BSP

-️ Comparison number: C000-BKH-3/8O, C000-BKH-3/8, KHR06N

* Buy once and do it right!

* Producer: Waryński Original
