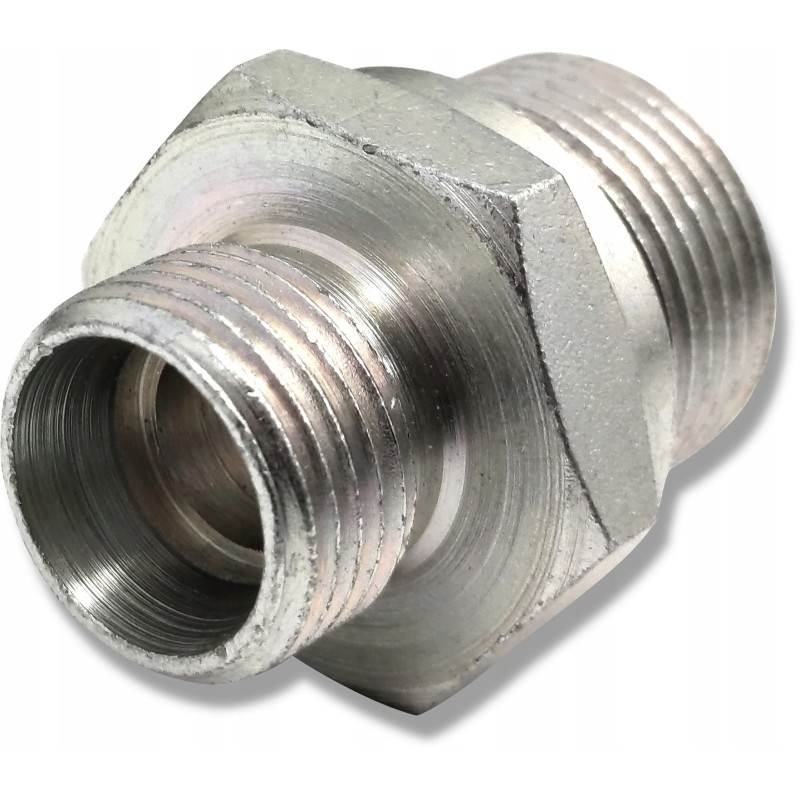

Straight hydraulic connector 3 8 1 2

STRAIGHT HYDRAULIC CONNECTOR G3/8' - G1/2' SKRAW-MET CODE: [0209]Application: The hydraulic connector is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry or construction.

The connector is designed to be screwed into the body of, among others: a pump, a distributor, etc.

It is used to connect the main components in the hydraulic system with hydraulic lines.

The connector is responsible for connecting a hydraulic pipe or an elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

The connector is designed to be screwed into the body. It should not be used to connect two hydraulic lines. For this purpose, connectors available at other auctions are used.

Technical data: Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 12mm

G1 thread on the cable side: external inch 3/8'

G2 thread on the cable side: external inch 1/2'

Connection version: light

Pressure nominal: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material: weldable steel, galvanized, corrosion-resistant
