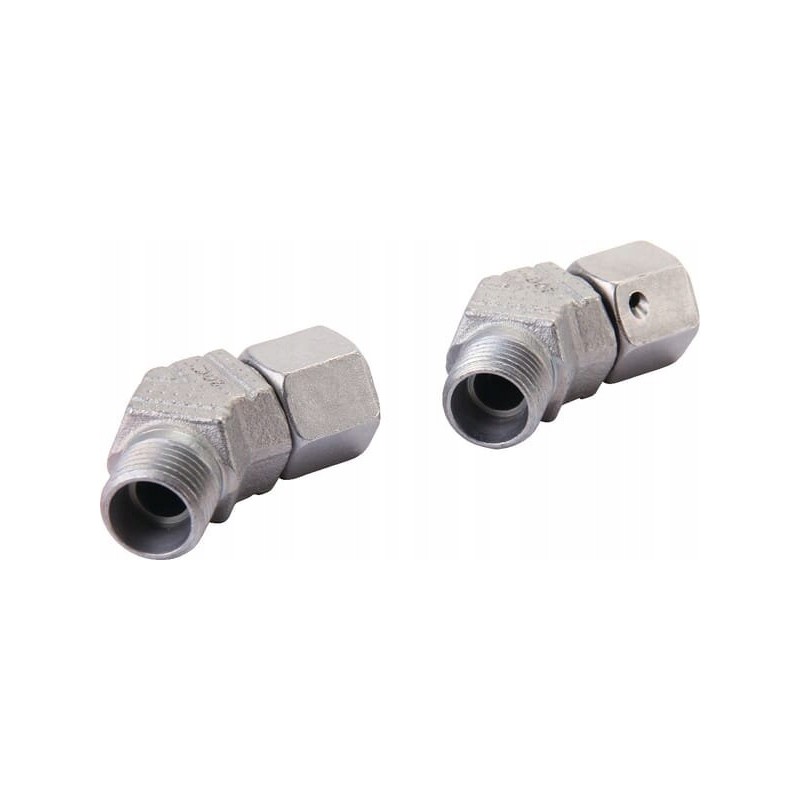

Elbow connector 45 with nut m18x1 5 12l evsd12

45° elbow connector with nut M18x1.5 12L Parameters

Part number: EVSD12L

Unit: piece

Manufacturer: Voss

Shape: Elbow - 2 sides connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 12 mm

Connector thread diameter: M18

Thread pitch Connector No. 1: 1.5 mm

Connector Thread Type: Metric

Connector Wrench Size: 19 mm

Connector Type No. 2: Conical with O-Ring

Connector No. 2 Type - Male/Female: Female

Connection Diameter No. 2 : 12 mm

Thread diameter of connector no. 2: M18

Thread pitch of connector no. 2: 1.5 mm

Thread type of connector no. 2: Metric

Pipe diameter: 12 mm

Angle: 45 °

Working pressure max.: 400 BAR

Series: L

Installation size: 29.5 mm

M thread: M18x1.5 mm

Specifications

- Pre-assembled O-ring - For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Properties

- High corrosion resistance - It has a sealing cone with a self-sealing ring It consists of

- Main part

- The union nut and cutting ring are already mounted - Without separate union nut and cutting ring DIN standard

- 2401

- 2353
