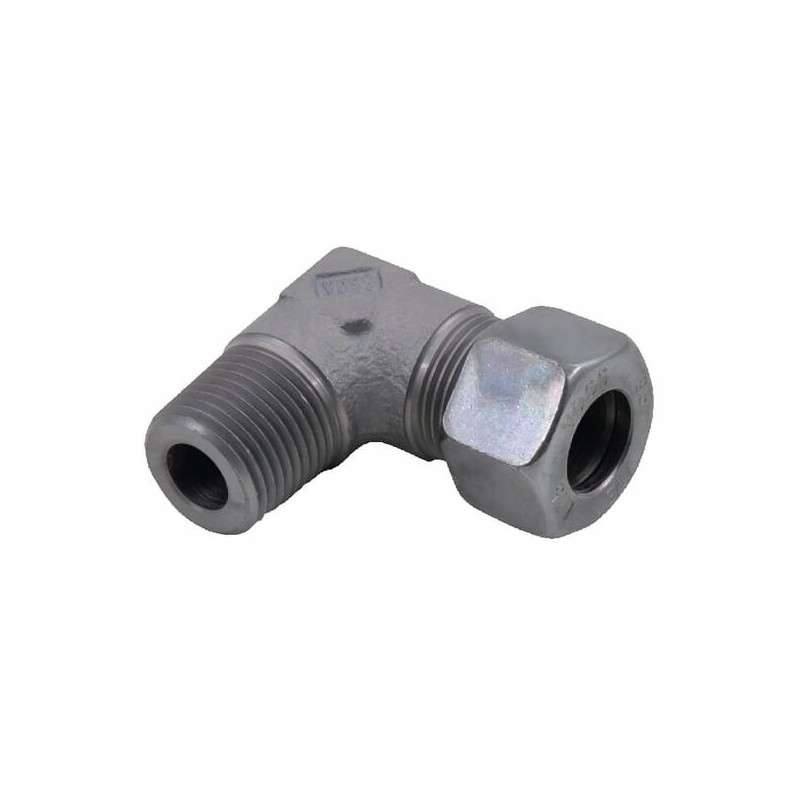

12L 1/4NPT Angle Threaded Fitting Parameters

Part Number: WEV12L14NPT

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 Sides Connection

Connector Type No. 1 - Male/Female: Male

Connection Diameter: 12 mm

Connector No. 1 Thread Diameter: M18

Connector Thread Length: 15.1 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 22.0 mm

Connector No. 2 Male/Female Type: Male

Connector No. 2 Thread Diameter: 1/4 inch

Connection thread type no. 2: NPT

Pipe diameter: 12 mm

ANSI standard: B1.20.1-1983.

ASME standard: B1.20.1-1983.

DIN standard: 2353

Angle: 90 °

Working pressure max. : 315 BAR

Series: L

Advantages

- Cutting ring 2S

Product details

- 2S cutting ring - Optimum connection to the cutting ring and perfect function - High corrosion resistance - Hydraulic hoses

- Hydraulic pipes

Dimension from the axis of the joint to the end of the next joint 17mm

Surface treatment

- Zinc

- Nickel plated
