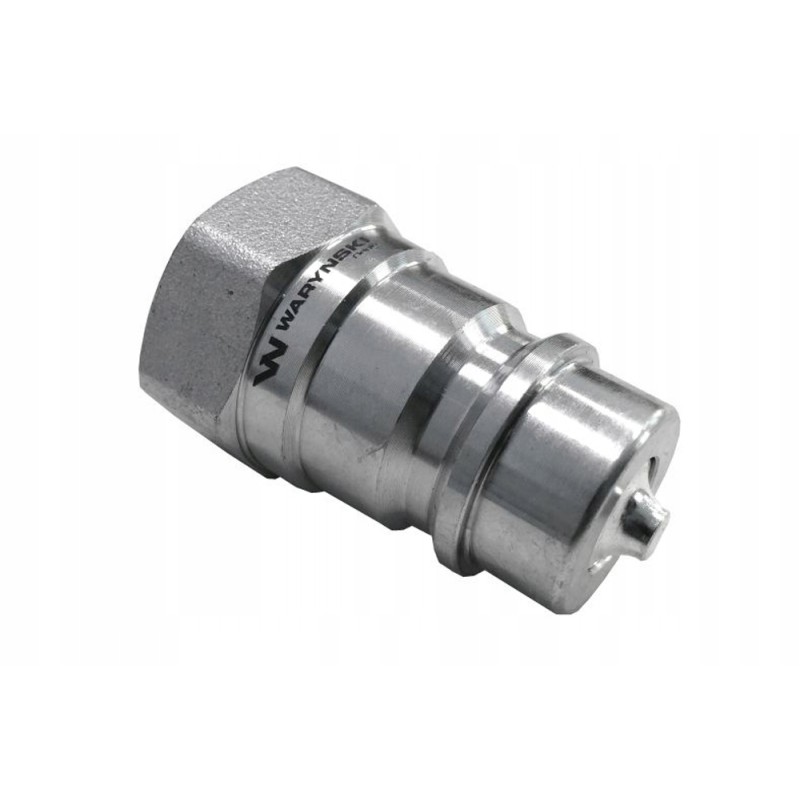

HYDRAULIC QUICK COUPLING PLUG G3/8\'BSP INTERNAL THREAD ISO 7241-A WARYŃSKIHydraulic quick coupling Waryński - ISO-7241-A plug. The most popular hydraulic quick couplings with a very wide range of applications. The quick couplings are designed
in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies
characteristics and dimensions in detail to enable compatibility of quick couplings
manufactured by various manufacturers in accordance with this standard. Interchangeable
with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.
Specification:
Thread: Internal 3 /8'
Max working pressure: 31.5 Mpa / 315 bar
Standard: (EURO), ISO-7241-A (ISO-A)
Fits sockets: WIAR38MW
Cone - thread: BSP
Type: Plug
No. catalog: WIAR38SW
Application:
Quick connectors used in agricultural, forestry, industrial and construction machines.
Waryński quick connectors solve the problem of quick connection and disconnection of flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.
Manufacturer: Waryński
WIAR38SW
