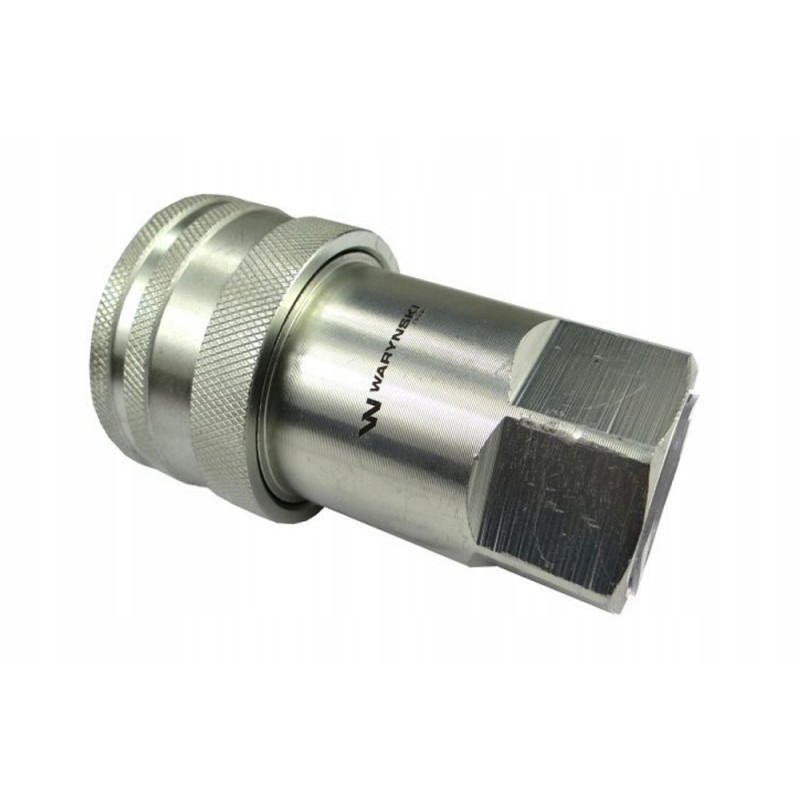

Hydraulic quick connector, G3 8 Warynski socket

HYDRAULIC QUICK CONNECTOR G3/8' SOCKET BSP INTERNAL THREAD ISO 7241-A WARYŃSKIHYDRAULIC QUICK CONNECTOR G3/8' SOCKET BSP INTERNAL THREAD ISO 7241-A WARYŃSKI Hydraulic quick coupler Waryński - ISO-7241-A socket. The most popular hydraulic quick connectors with a very wide range of applications. The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

Parameters:

* Operating temperature: from -25°C to +120°C

* Thread: Internal 3/8'

* Max working pressure: 31.5 Mpa / 315 bar

* Standard: ISO-7241-A (ISO-A)

* Group: Quick connectors

* Fits plugs: WIAR38SW

* Cone - thread: BSP

* Type: Nest

-️Application:

Quick connectors used in agricultural, forestry, industrial and construction machines.

Waryński quick connectors solve the problem of quickly connecting and disconnecting cables flexible. The spring mechanism facilitates the connection of the plug to the socket with one hand.

* Producer: Waryński Original
