Pglo61690 tip dn06 m16x1 5 10l 90

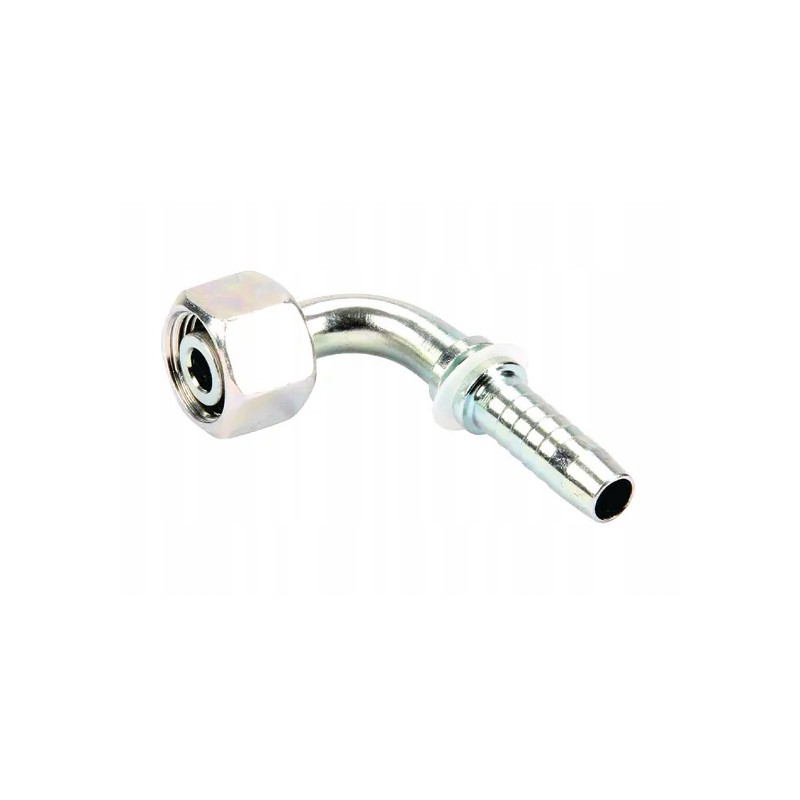

PGLO61690 End cap DN06-M16x1.5-10L-90° EAN

8716106441198

Product details

Cone, cone seal with O-ring

L Series Crimping Ring Connector

Includes

Fittings

O-Ring

Cone Angle

24 °

Shape

Elbow - 2 sides of connection

Connection type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOL

Thread diameter of connector no. 1

M16

Thread pitch for connector no. 1

1.50 mm

Wrench size for connector no. 1

19.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Diameter of Connection No. 2

1/4 inch

Diameter of Connection No. 2

6 mm

Dimension from the axis of the connector to the bottom next joint

28 mm

Dimension from the axis of joint no. 2 to the end of the next joint

32.5 mm

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated< p>

Series

10L

OE reference number

H1221593-041600

Connection

xx

Type

DKOL
