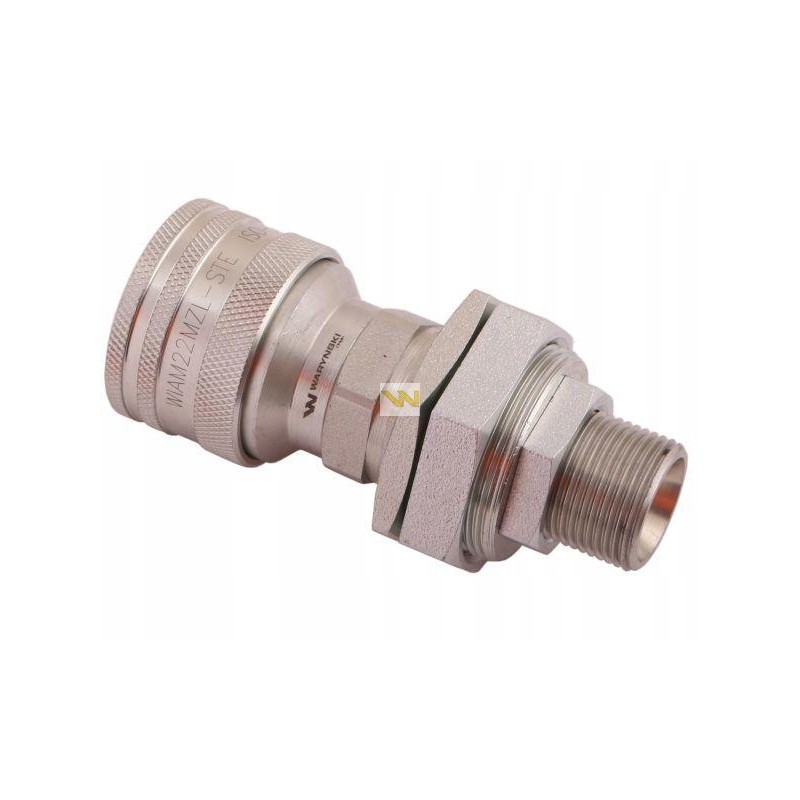

Hydraulic quick connector, Euro Warynski socket

Hydraulic quick coupler, long socket with pressure eliminator M22x1.5, external thread EUROWaryński hydraulic quick coupler (Adaptation of the old type 504900) - socket with EURO long pressure eliminator (long thread with a locknut. External thread on the quick coupler body with nuts adapted for installation in old type tractors. Quick couplers are designed in accordance with the dimensional and quality requirements of the ISO standard

Quick connectors used in agricultural

forestry

industrial

construction machines. Waryński quick connectors solve the problem of quick connection and disconnection of flexible cables. The spring mechanism (acts in both directions) facilitates the connection of the plug to the socket, often using one hand Thread: External M20x1.5 (long with lock nut)

Type: EURO socket (adaptation of the old type 504900) with pressure eliminator

Cone - thread: 60°

Max. working pressure: 25.0 Mpa / 250 bar

Working temperature : from -25°C to +120°C
