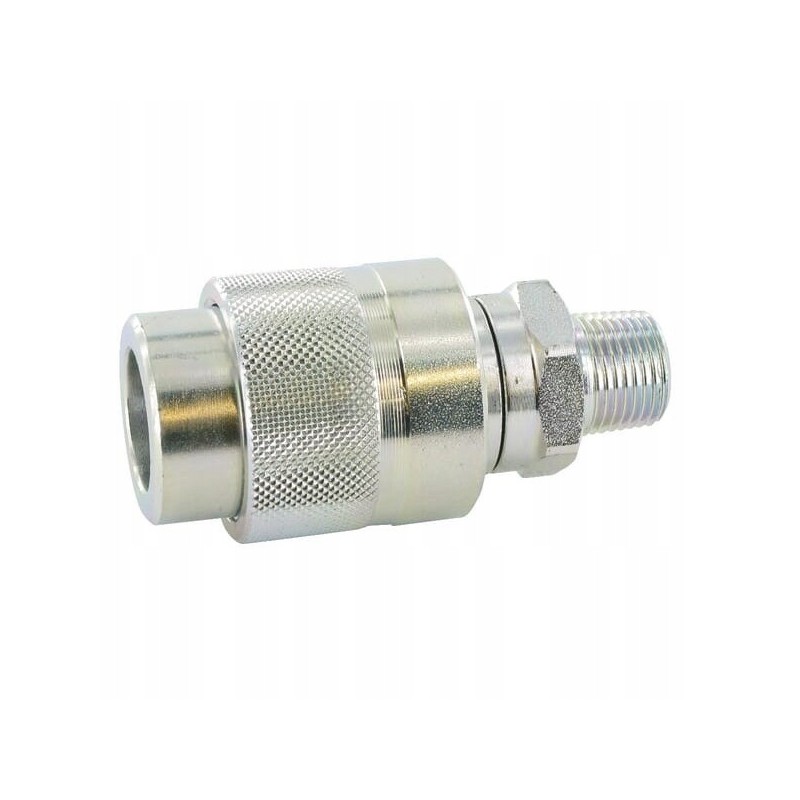

Quick connector 3 8 npt ag

3/8 NPT AG quick connector INDEX: PVVM138NPTF

Material: Carbon steel

Technical information: - The connector should be screwed on until it stops

Features: - Extremely high pressure connector - With a ball valve - High availability of equivalents from other manufacturers on the European market

Valve type: Poppet shape

Shape: Straight - 2 sides of the connection

Application : - Hydraulic tools - Rescue equipment - Construction machinery - Mineral oil based fluids

Size: 10 mm

Outer diameter: 36 mm

ISO standard: 14540

Series: PVVM

Connector thread diameter: 3/8 inch

Connection: dB

Surface treatment: White passivated

Connector thread type: NPTF

Total length: 83 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 300.2g

Working pressure: 1000BAR

Connector type no. 2 - male/female: Female

Possibility of connection under pressure: Yes

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Thread

Connection method: Screwed

Connection diameter no. 2: 36mm

ANSI standard: B1.20.3

Disconnect method: Screwed

Connector type no. 2: Thread

Flow at 2 bar pressure: 20l/min

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male

Connector no. 1 wrench size: 25 mm

Thread type connector no. 1 - code: 01

Number of turns per inch of thread of connector no. 1: 18
