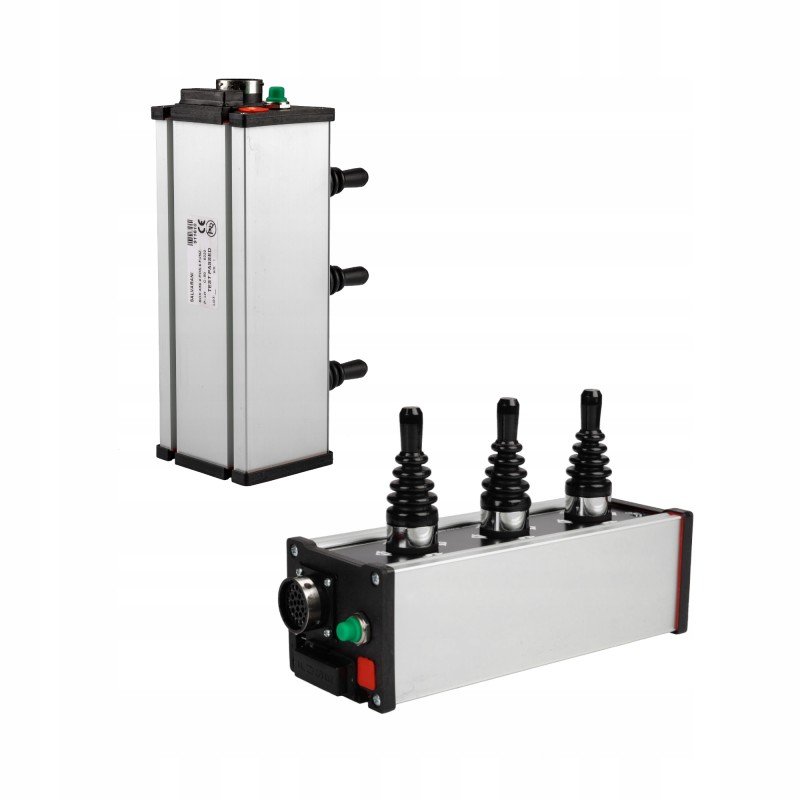

Control panel box 3 911610cv91507te060 salvarani

COMPLETE CONTROL PANEL IN ALUMINUM HOUSING INCLUDED WITH POWER CABLE, SOCKET AND MOUNTING BRACKET AND INTERMEDIATE CABLE AND PLUGS FOR THE DISTRIBUTORAdditional accessories included: power cable, socket and mounting bracket, intermediate cable (7 m), plugs (12 pcs) for connection with the distributor and in poles for traffic lights or other devices.

Production:

Original product of the Salvarani brand, manufacturer's symbol: 1.10.61.35.911610.7

Application:

Housing with three manipulators with 5-position levers, allows you to control six sections in a 12V electrically controlled hydraulic distributor. It is widely used in electrical control of hydraulic systems in agriculture, construction and industry.

General information:

The housing is complete and ready for operation. It has all the necessary connections and electrical outputs. Equipped with two joysticks, a safety switch, two power sockets, a distributor output and all necessary electronics and fuses.

Additional accessories included: power cable, socket and mounting bracket. Cables and plugs for connection to the splitter are purchased separately.

Each joystick has 4 unstable (working) positions and one stable (neutral center position). Monostable design where the joystick lever returns itself to the middle - neutral position. They have a rubber sealing cover that protects against dust, water and is resistant to oil.

Technical data:

Lever material: Steel

Material lever covers: Rubber

Mode of operation of each joystick: Monostable (spring-based)

Number of working positions in each joystick: 4

Recommended power supply current: 10A - 12V DC (You can power the panel with 24V DC, but in this case the power LED will not light)

Casing dimensions (mm): length 203, width 98, height 83

Material casing: aluminum

Casing color: silver-black

Operating temperature: from -25 to 55°C

Tightness class: IP54

Certificates: CE
