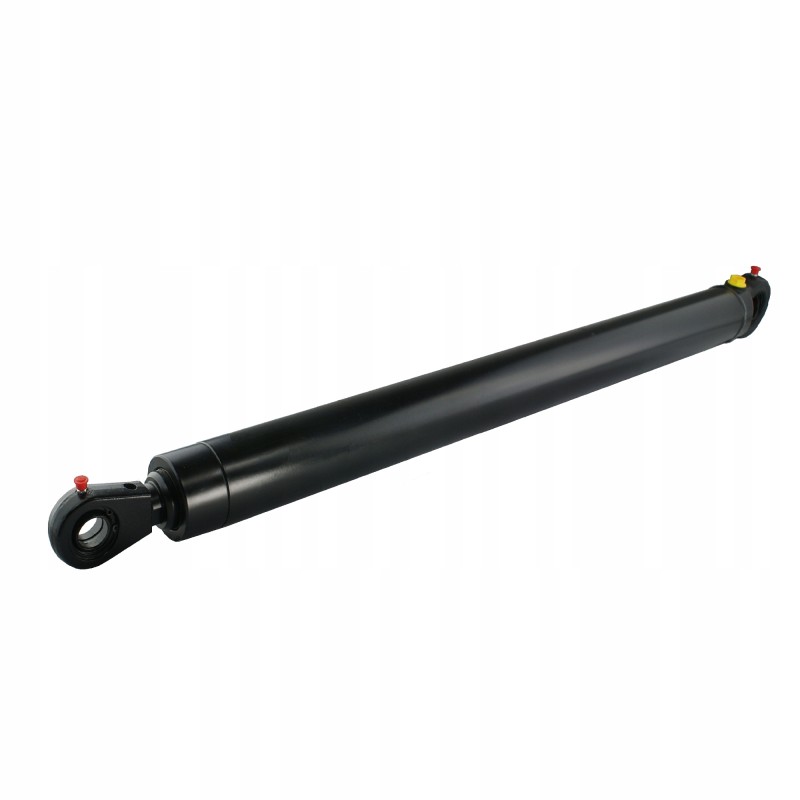

The cylinder of the hydraulic cylinder for the aurochs is reinforced

SINGLE-ACTING PLUNGER CYLINDER, COMPLETE WITH EARS ON SWINGING BEARINGSProduction:

Original product of the Hydrolider brand, manufacturer's symbols: 1.30.70.010, CN 50/630 U25

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

The actuator is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you see in the photo are only the metal elements from which the actuator is made . In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Mounting the head from the rod side: screwed on

Type of stuffing box (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Piston (pipe) outer diameter: 70mm

Piston rod (rod) diameter: 50mm

Pin hole diameter: 25mm

Stroke (working movement) of the piston rod: 630mm

Length in the rest state measured in the axes of the holes: 870mm

Internal thread for connection: M16x1.5

Operating parameters:

Maximum permissible operating pressure: 250 bar

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature: -15ºC to +80ºC< p>

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
