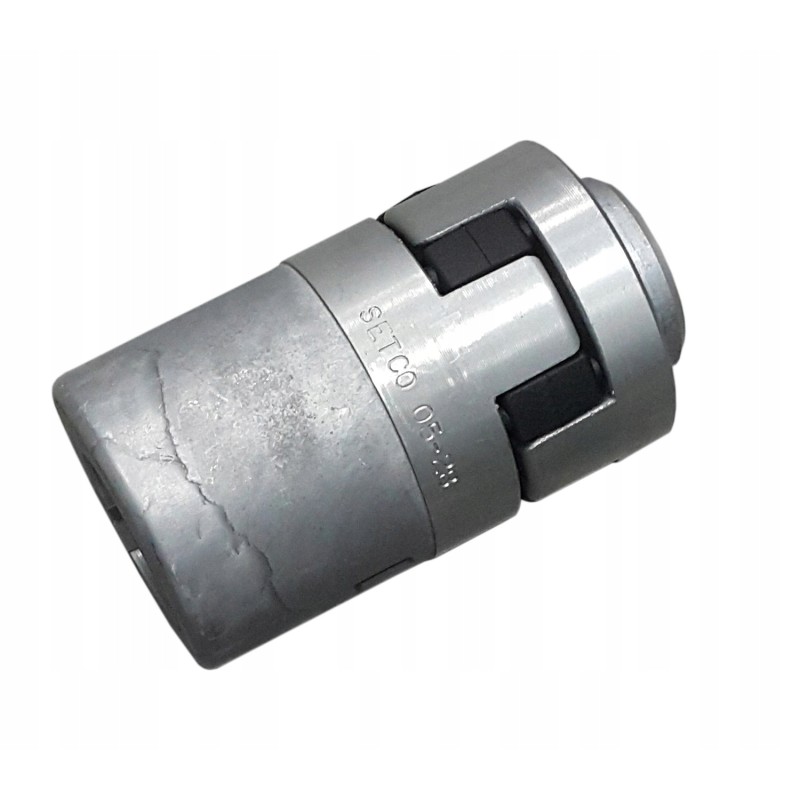

Engine pump clutch gr3 2 2 4 kw, shaft 28mm

COMPLETE WHEEL CLUTCH 2.2 - 4 kW GROUP 3 SKRAW-MET CODE:[1196]Application:Used in hydraulic systems in agriculture, horticulture, forestry, construction and industry.

Connector designed to transfer the rotational force from the engine shaft to the pump shaft.

To reduce and dampen vibrations during operation of hydraulic systems, thanks to flexible connecting material: polyurethane.

FOR GROUP 3 PUMPS

FOR ELECTRIC MOTORS 2.2 - 4 kW

Shaft 28 mm

Motor size 100/112

Hub material: Aluminum

Aluminum clutch with insert flexible, mounted internally bell connector, is an element connecting the electric motor (1 or 3 phase) with a hydraulic pump (European type).

SYMBOL: 0528-S05-053UN Technical Specification: Connector hardness (Shore scale): 80

Torque (nM) - 273

Max speed (rpm) - 10423

Cone - 1:8

Dimensions: A - 109.5 mm

B - 54 mm

C - 28 mm

D - 19.5 mm

E - 40 mm

Production: Brand: SETCO

Country of Origin: Italy
