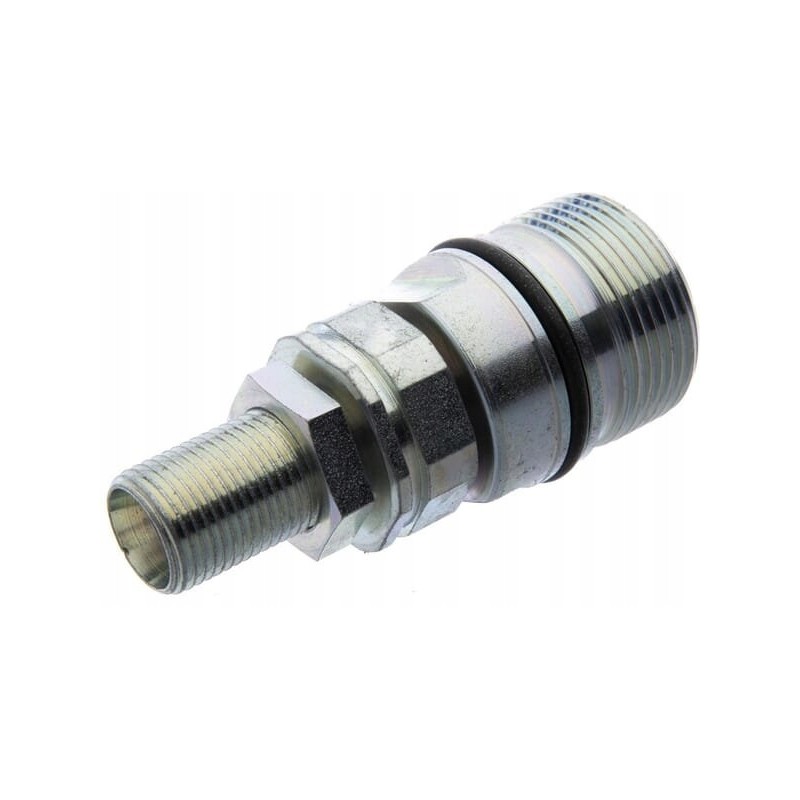

Screwed quick connector 1 4 bulkhead thread m1

Screwed quick connector 1/4' bulkhead thread M14x1.5 8L - socket Parameters

Part number: SKSF06N14

Unit: piece

Manufacturer: Stauff

Content: 20 l/min

Possibility of connecting under pressure: Yes

Connection: 8L

D [D]: M24x2 mm

Length [L1]: 73 mm

Seal material: NBR / PTFE

Flow max. : 20 l/min

Max. temp: 100 °C

Min. temp.: -30 °C

Nominal pressure: 450 BAR

D1: 13.1 mm

ISO standard: ISO 14541

BG size: BG 1

Surface treatment: White, passivated

Thread length [L3]: 25 mm

Opening spanner [SW]: 19 mm

Specifications

- Self-locking connecting thread

Benefits

- High working pressure

- Protection against unintentional unscrewing due to vibrations Application

- Construction machinery

- Mineral oil based fluids Properties

- Solid workmanship - Low pressure losses - With cut-off on both sides Technical information

- The clutch must be screwed in until it stops - Clutch only possible at pressures up to 50 bar
