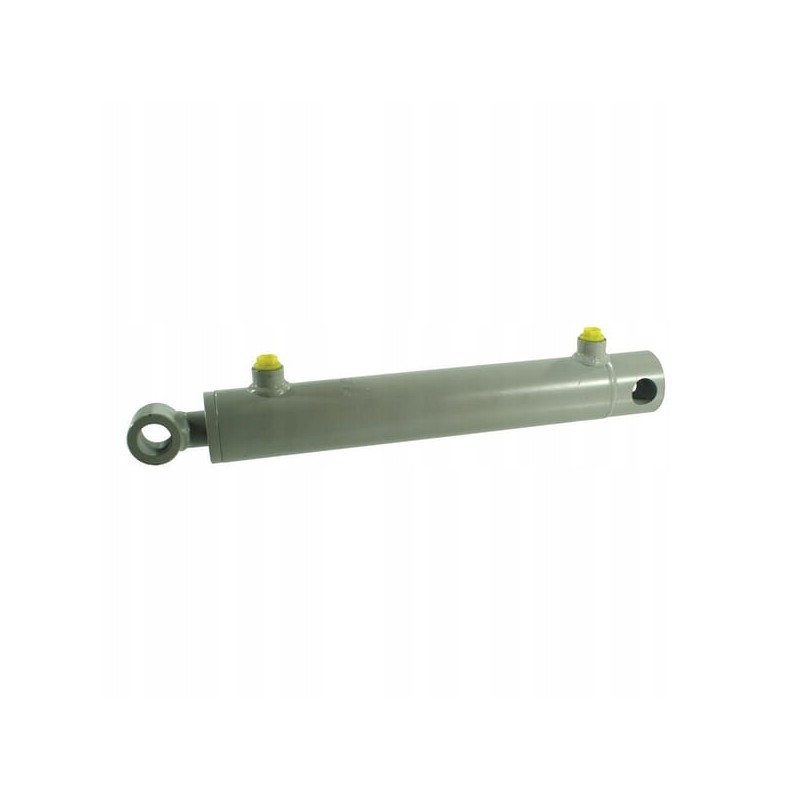

Double Acting Cylinder 30/60/1000

Description:

Part Number

EAN 5700038822548 Unit Piece Specifications

Completely assembled

With fixings

Unique innovative design

Special locking ring on the piston

Benefits

For immediate use

Simple assembly and disassembly

Long service life

High level of operational safety

Properties

Primed

Mechanical protection of cylinder head for reuse

Maximum radial load: 10% of axial force

Maximum working pressure depends on maximum buckling load

The maximum buckling load can be checked in the cylinder software

Technical information

Interchangeable with other brands

Medium: mineral oil, HLP ISO VG 32 for ISO VG 46

Medium purity: ISO 4406 22/20/17 or NAS 9

Application category Universal GPistol rod diameter 30 mm Type Double acting ASstroke 1000 mm Length min. 1173 mm Working pressure max. 250 BAR Mounting type - cylinder side Hole Mounting diameter - cylinder side 25.4 mm C Mounting thread diameter - cylinder side 3/8 inch Mounting type - piston rod side Hub Mounting diameter - piston rod side 25.4 mm NInstallation hole diameter - piston rod side 25, 4 mm Max. speed piston rod 0.1 m/s EOuter diameter 70 mm HInstallation hole diameter - cylinder side 25.4 mm BInstallation spacing min. 1173 mm Mouter diameter of the mounting sleeve 42 mm Lwidth of the mounting head 45 mm Operating temperature min. -25 °C Operating temperature max. 85 °C Nominal pressure 200 BAR Surface treatment of the piston rod Chromated Cylinder material Steel ST52 Tolerance class of the cylinder material - code H10 Piston rod material Steel 20MnV6 Smoothness of the piston rod surface 0.2 µm Head nut material Cast iron Oil connection material Steel FDimension from the end of the cylinder to the mounting sleeve 12, 5 mm Inner diameter 60 mm

Manufacturer: replacement
