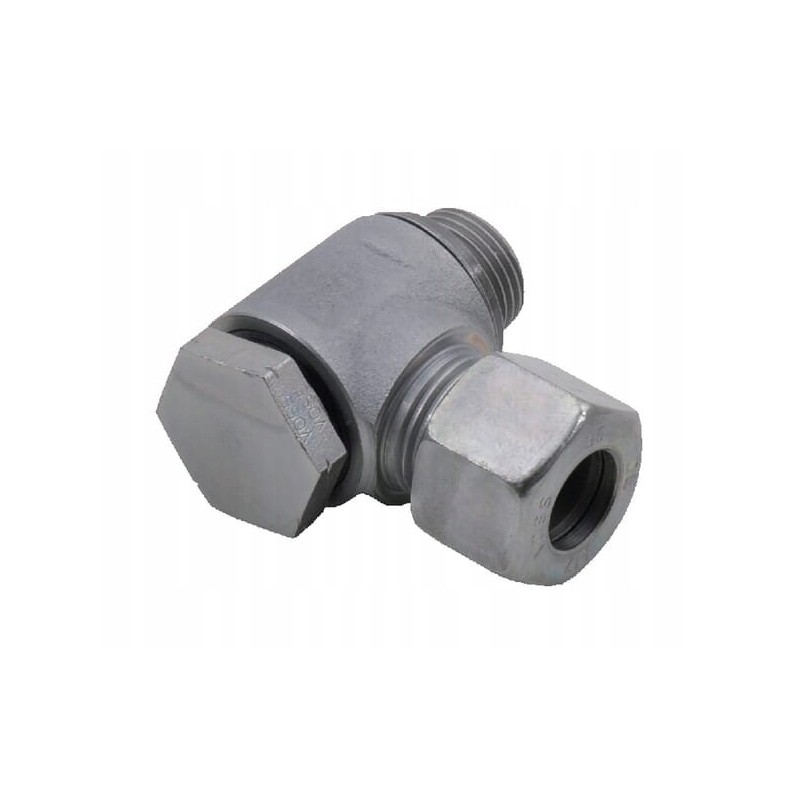

Swivel threaded angle connector 10l r3 8

Swivel threaded elbow fitting 10L R3/8 Parameters

Part Number: RSWV10LR38WD

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 Sides Connection

Connector Type No. 1: Cutting Ring

Connector Type No. 1 - Male/Female: Male

Connection Diameter: 10 mm

Connector No. Thread Diameter 1: M16

Connector Thread Length: 12 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: BSP

Wrench Size for Connector No. 1: 22.0 mm

Connector No. 2 Type: Banjo

Connector No. 2 Type - Male/ female: Male

Thread diameter of connection no. 2: 3/8 inch

Number of turns per inch of thread of connection no. 2: 19

Thread type of connection no. 2: BSP

Pipe diameter: 10 mm

ISO standard: 228

Angle: 90 °

Working pressure max.: 500 BAR Dimension from the axis of the joint to the end of the next joint 33mm

Dimension from the axis of joint no. 2 to the end of the next joint 17.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated

Seal material

- Metal

- Synthetic elastomer

Series

-LL

-L

- S
