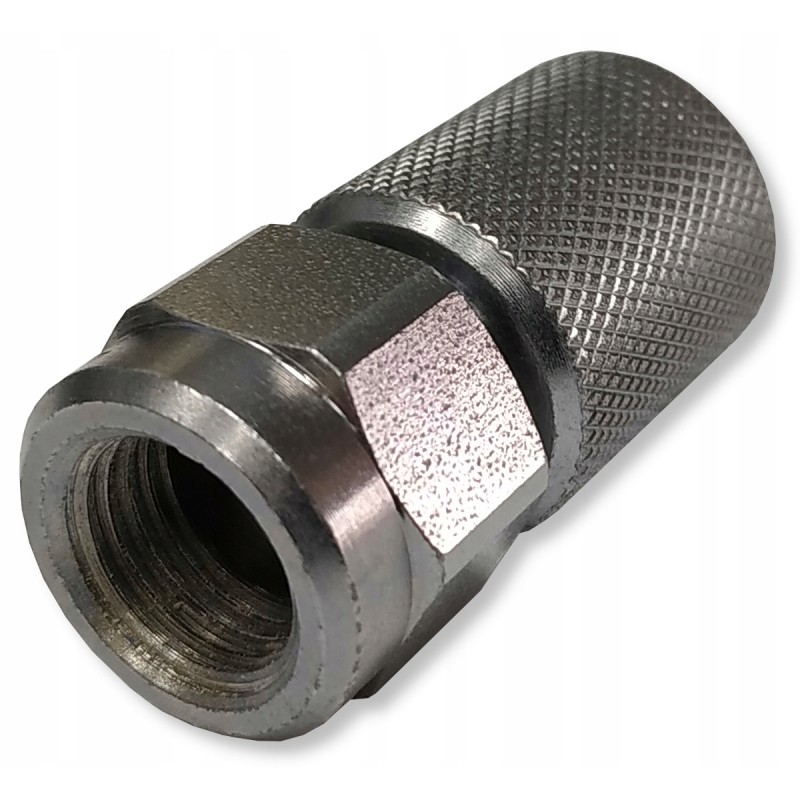

Measuring connection m16x2 1 4 for pressure gauge

MEASURING CONNECTION M16x2 / 1/4' FOR MANOMETER CODE SKRAW-MET: [1930] Application: Measuring connection serving as an adapter mounted directly to the pressure gauge or as an adapter for quick connection and disconnection from another element with an M16x2 thread

Used to measure and control pressure in hydraulic systems, works well in other hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry and construction.

Technical data: M1 thread on the rough side: internal metric 16x2

G2 thread for pressure gauge: internal inch 1/4 ' BSP

Maximum pressure: 470 bar

Type of fluid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

At our other auctions, you will receive pressure gauges (Up to 400 BAR) for such connections. We also have diagnostic and measurement kits that allow you to constantly monitor the condition of the hydraulic system or receiver (e.g. actuator).
