Dkol 90 fitting dn16 1 2sn m30x1 5 hydrolider

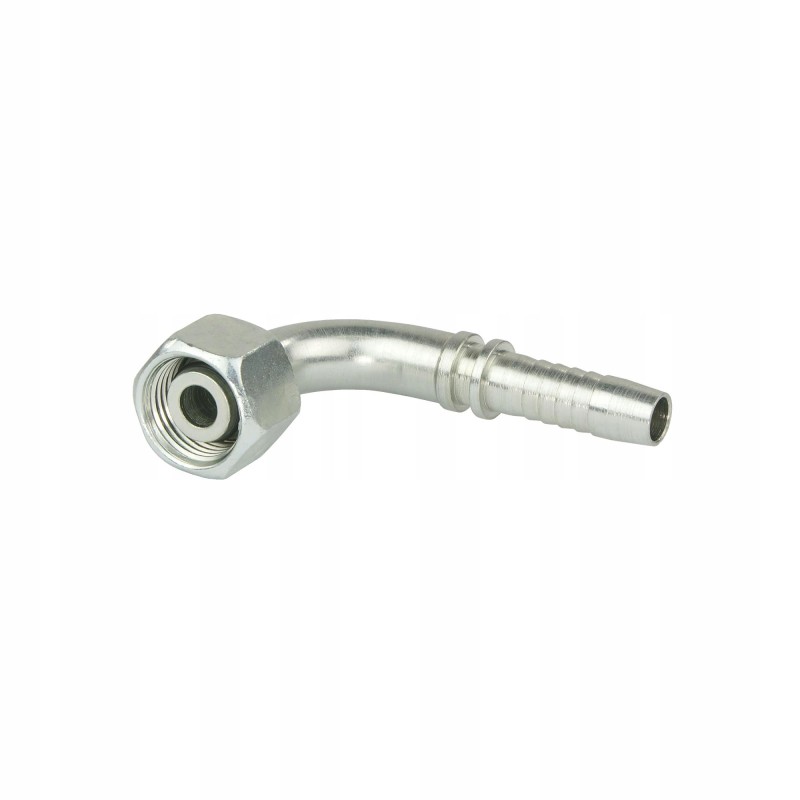

ANGLE HYDRAULIC FITTINGDKOL-90 30x1.5 FOR HYDRAULIC HOSE 1SN / 2SN DN16Production:

Hydrolider, symbol: 4.06.16.030

Application:

Cutting used in the production of hoses hydraulics, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer:

Agriflex, Semperit, Stomil from the DN16 group with single and double braiding. Fits sleeves from the DN16 group with the marking 1SN and 2SN.

Technical data:

90° angle fitting, 30x1.5 metric thread tip, light version with a 24° cone and an additional ring sealing. Made in accordance with the standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables:

Electrolytic protective coating Alkaline ZN - minimum thickness 8µm Type A chromate passivation, chromium (VI) free in accordance with DIN EN 15205. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN16 1SN, DN16 2SN or other with an internal diameter of 16mm
