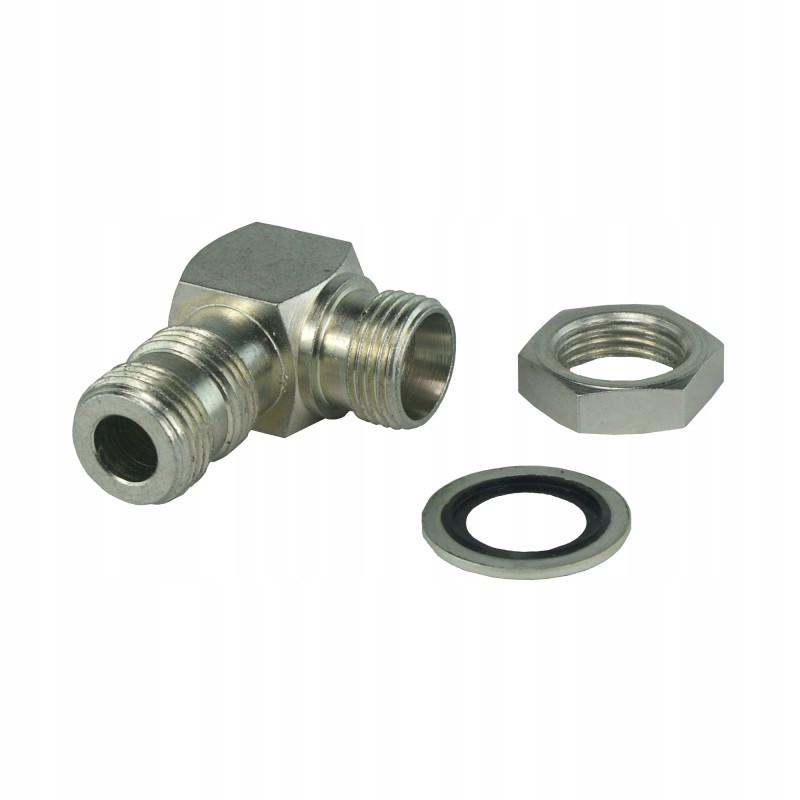

Angle hydraulic connection, nipple 16-18

ANGLE HYDRAULIC CONNECTION BB 16 - 18 Production:

Hydrolider, symbol: 1.60.40.009

Application:

It is widely used in hydraulic systems in agriculture, horticulture and forestry , construction and broadly understood industry.

The angle connection allows you to route the hydraulic conduit closer to the pump or cylinder body. Used where space is limited and a crimped cable with a traditional elbow does not fit.

The connection is offered in a set with a pressure nut and a sealing washer. Screwed into the body of e.g. a pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic lines.

The side intended for screwing into the body has a longer, double thread that allows sealing with a pressure nut and a gasket. The use of additional seals is not required in this place.

The other side is intended for screwing the pipe, elbow or other connector. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body and is not suitable for connecting two wires. This is done using connectors that can be purchased at our other auctions.

Helpful data:

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm] : 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14.6

Thread diameter M18x1.5 measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal passage diameter: 8mm

Thread on the body side: external metric 16x1.5

Thread on the cable side: external metric 18x1.5

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
