Quick connector cnv plug 1 2 male thread m22x1 5

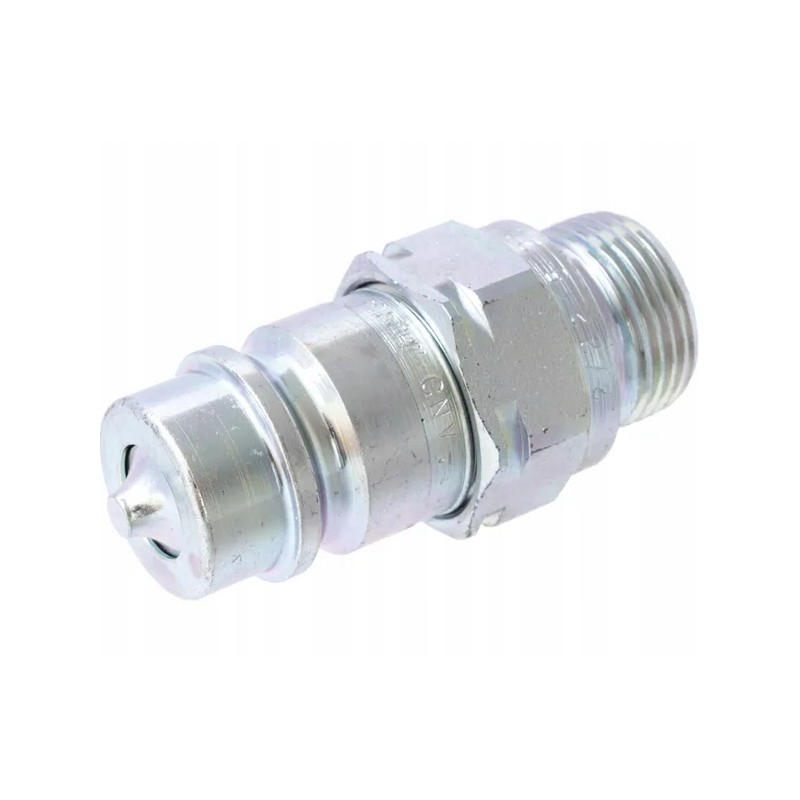

CNV0822215M Quick connector CNV plug 1/2' external thread M22x1.5 15L Application

Universal use

Agricultural machinery

Mineral oil-based fluids

Properties

Induction hardening in places exposed to rapid wear

Fits CPV Faster sockets

Technical information

Connection is made by pressing the plug (one-handed operation)

Shape

Straight - 2 sides of connection

Size

1/2 inch

Size

12.5 mm

Connector type no. 1

Quick connector

Connector type no. 1 - male/female

Male

Connection Diameter #1

0.81 inch

Connection Diameter

20.5 mm

Thread diameter of connector no. 1

22 mm

Thread pitch of connector no. 1

1.50 mm

Type of connector thread< p>

Metric

Connector no. 1 thread type - code

02

Connector no. 1 key size

1, 06 inch

Connector #1 Key Size

27mm

Connector #2 Type

Thread

Type connectors no. 2 - male/female

Male

Connection no. 2 diameter

15 mm

Connection no. 2 thread diameter

M22

Connection no. 2 thread pitch

1.50 mm

Connection no. 2 thread type

Metric

Possibility of connection under pressure

Yes

ISO standard

7241-A

8434-1-L

Flow at a pressure of 2 bar

75 l/min

Outer diameter

1.18 inch

Outer diameter

30 mm

Total length

2.28 inch

Total length

58 mm

Material

Carbon steel

Surface treatment

White passivated

Working pressure

250 BAR

Operating temperature max.

125 °C

Operating temperature min.

-25 °C

Type of quick connector lock

Balls around the circumference

Connection method

Press to connect

Disconnection method

Pull to disconnect

Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Series

CNV

Valve type

Poppet head

Weight

109.4 g
