Elbow with locknut bsp 1 4 unf 7 16

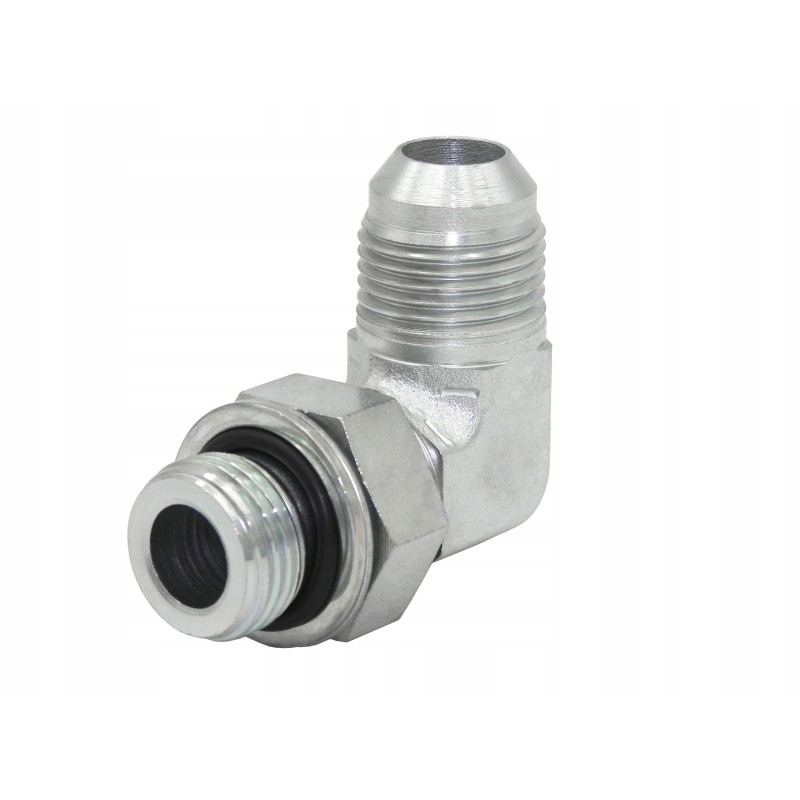

HYDRAULIC ELBOW WITH LOCK NUT BSP 1/4'' - UNF 7/16''Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies included with a locknut, a sealing washer and a gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and locknut), the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the side connection: external inch BSP 1/4''

Thread on the other side: external inch UNF 7/16''

Nominal pressure: 180bar

Maximum pressure : 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
