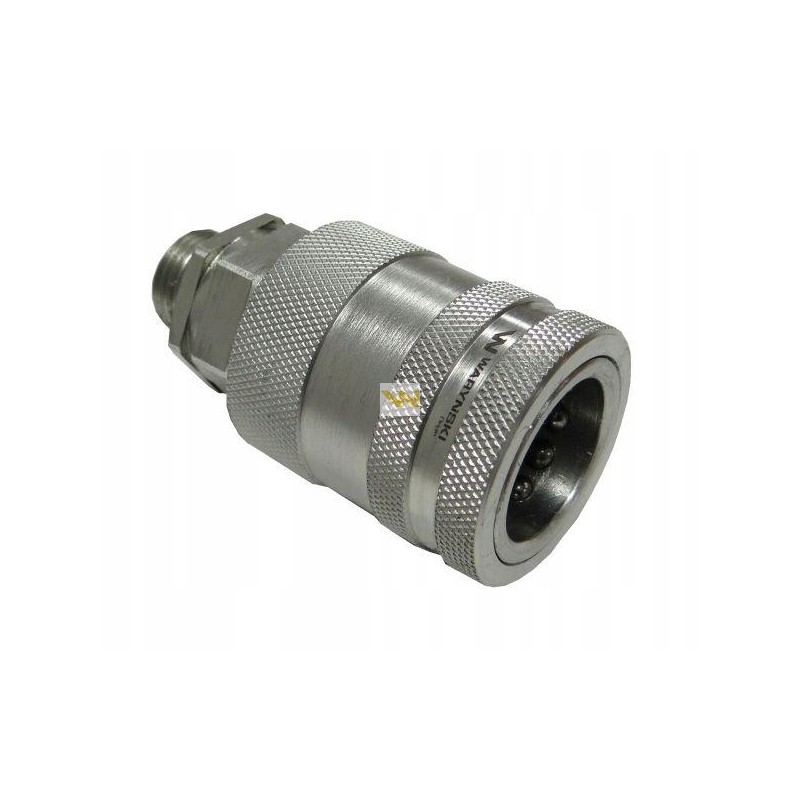

Hydraulic quick connector, socket M20x1, 5 euros

Hydraulic quick coupling, socket with pressure eliminator M20x1.5 external thread EURO WaryńskiHydraulic quick coupling socket with pressure eliminator M20x1.5 external thread EURO PUSH-PULL (9100822G) (ISO 7241-A) Waryński. The pressure eliminator allows the hydraulics to be connected without the need to apply excessive force, ensuring a quick and easy connection process in any situation (static pressure between the two hydraulic systems is released). It is an ideal solution for connecting hydraulics with a very wide range of applications. This type of quick coupler socket also protects against cracking/breaking of the hydraulic hose and loss of hydraulic oil in the event of its unintentional stretching - e.g. driving away the tractor without disconnecting the hydraulics from the connected machine (installation of the quick coupler socket to the body/housing in the tractor using the locking sleeve). The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

Thread: External M20x1.5

Type: EURO PUSH-PULL socket with pressure eliminator

Cone - thread: 60°

Max .operating pressure: 25.0 Mpa / 250 bar

Operating temperature: from -25°C to +120°C

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism (works in both directions) makes it easy to connect the plug to the socket, often with one hand. The static pressure between the two hydraulic systems is relieved using a pressure eliminator. This means trouble-free connection of quick connectors in lines connected to the supply line in which the pressure eliminator is connected. The pressure eliminator enables hydraulic connection without the need to apply excessive force, ensuring a quick and easy connection process in any situation
