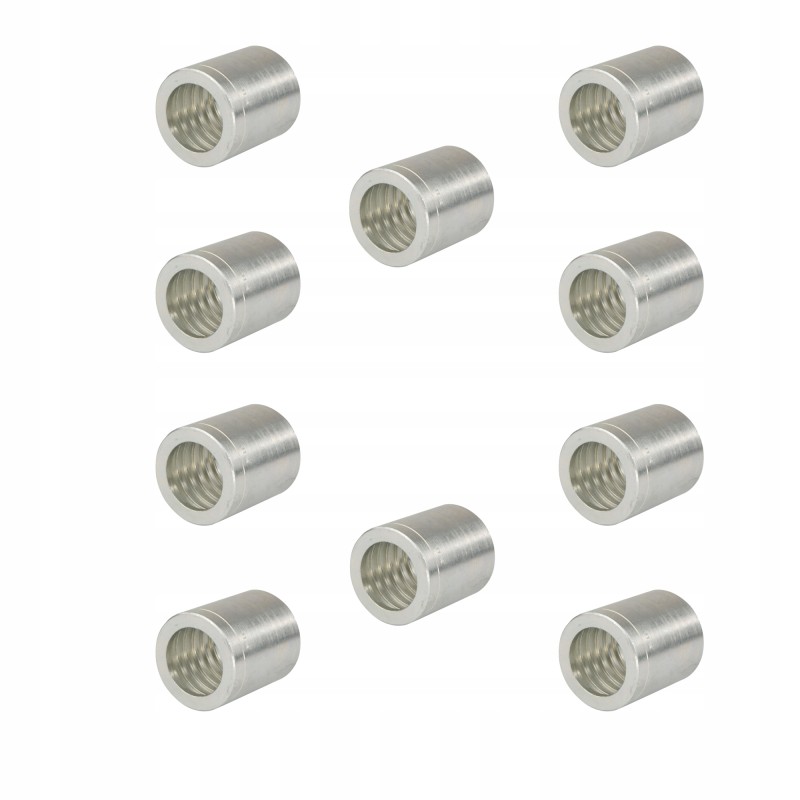

Ferrule for crimping 1sn dn8 x10 hydrolider

SET OF 10 PIECES FOR CLAMPING 1SN DN8 HOSE Production:

Original product of the Hydrolider brand, symbol: 4.03.01.008.10

Application:

Sleeve used in the production of hydraulic hoses , has a wide range of applications in agriculture, industry and forestry.

Designed for fitting on DN8 hydraulic hoses with a single braid. Fits all hoses from our offer:

Hydrolider, Agriflex, Semperit, Stomil Bydgoszcz.

Fits all types of hydraulic fittings, straight and angular, intended for fitting on DN8 pipes with a diameter internal 8mm.

Technical data:

Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205 standard.

Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN8 1SN or other with an external diameter of 15mm
