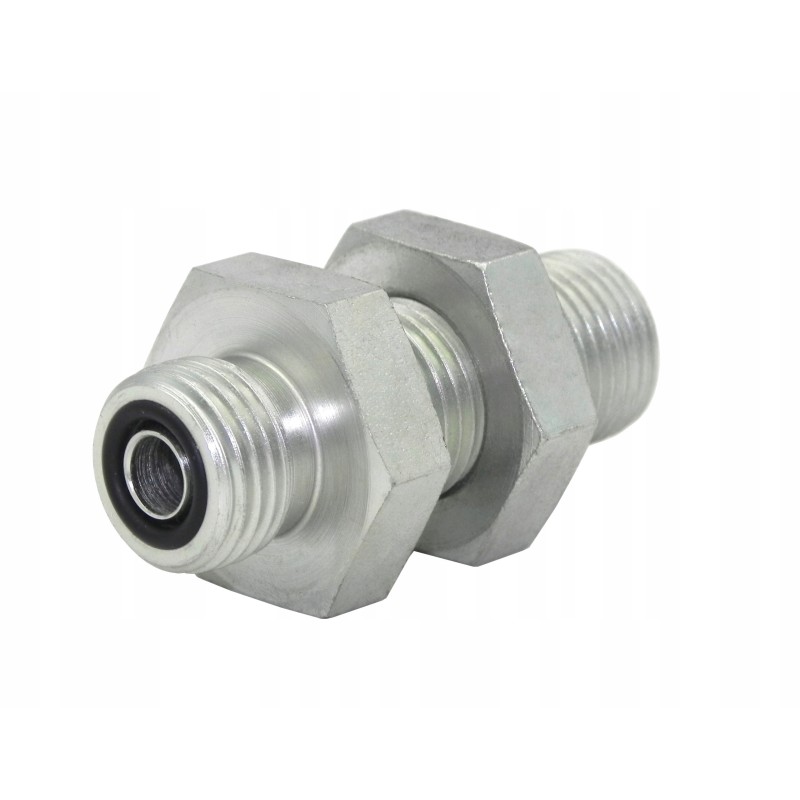

Orfs 13 16 bulkhead hydraulic connector

HYDRAULIC CONNECTOR ORFS 13/16'' - ORFS 13/16'' BULKHOLD CONNECTORApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connector, standard, lightweight version with conical self-sealing clamp when tightened. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections are used for this purpose and can be purchased at our other auctions.

Technical data:

Thread on one side: external inch ORFS 13/16''

Thread on the other side: external inch ORFS 13/16''

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate
