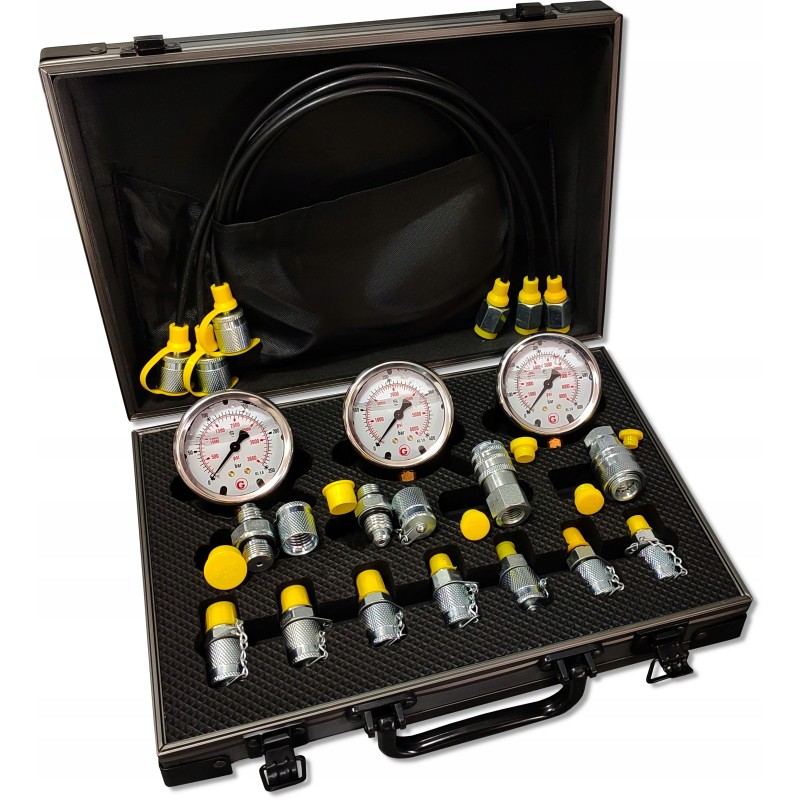

Diagnostic kit for 3 mano power hydraulics

Hydraulic pressure diagnostic kitSKRAW-MET CODE: [2472]This kit is a simple kit for testing hydraulic pressure. It contains three pressure gauges, three hoses and eleven test connectors (including two dedicated ones).

It provides reliable results pressure measurement, each element is very easy to connect and use.

Box dimensions: thickness - 85 mm

width - 315 mm

height - 215 mm< p>

PREMIUM QUALITYThe complete diagnostic kit includes: protective plastic case

Manometer 0-250 bar Φ63 mm - G1/4'

Manometer 0-400 bar Φ63 mm - G1/4'

Manometer 0-600 bar Φ63 mm - G1/4'

3x test cable 1.5 m long, M16x2 - G1/4'< p>

Measuring connection G1/8'

Measuring connection G1/4'

Measuring connection G3/8'

Measuring connection M10x1

Measuring connection M10x1.25

Measuring connection M14x1.5

Measuring connection 7/16-20 UNF

Measuring connection 9/16- 18 UNF

Measuring connection 1/4 NPTF

and dedicated connections: BSP 1/8 F measuring connection for CATerpillar / CASE / John Deere machines

Measuring connection BSP 1/4 F for KOMATSU / HITACHI machines

Features and properties of the diagnostic kit: The kit is supplied with three pressure gauges with different working pressures: 250/400/600 BAR, they ensure accurate pressure measurement, efficiency and convenience.

The hydraulic pressure gauges included in the case work with replaceable test fittings of the following sizes 1/4 NPTF, G1/4', G3/8', G1/8', 7/16-20 UNF, 9/16-18 UNF, M10x1, M10x1.25, M14x1.5

The test hoses are made of nylon (inner), aramid fiber (middle) and polyurethane (outer), heat resistant and high pressure.

Solid, thick housing and high-quality sponge for excellent protection of hydraulic measuring instruments

The test set is designed for most excavators and machines available on the market. Hydraulic test pressure gauge is used in construction, agriculture, machinery, shipping, mining, petroleum, chemical industry, etc.
