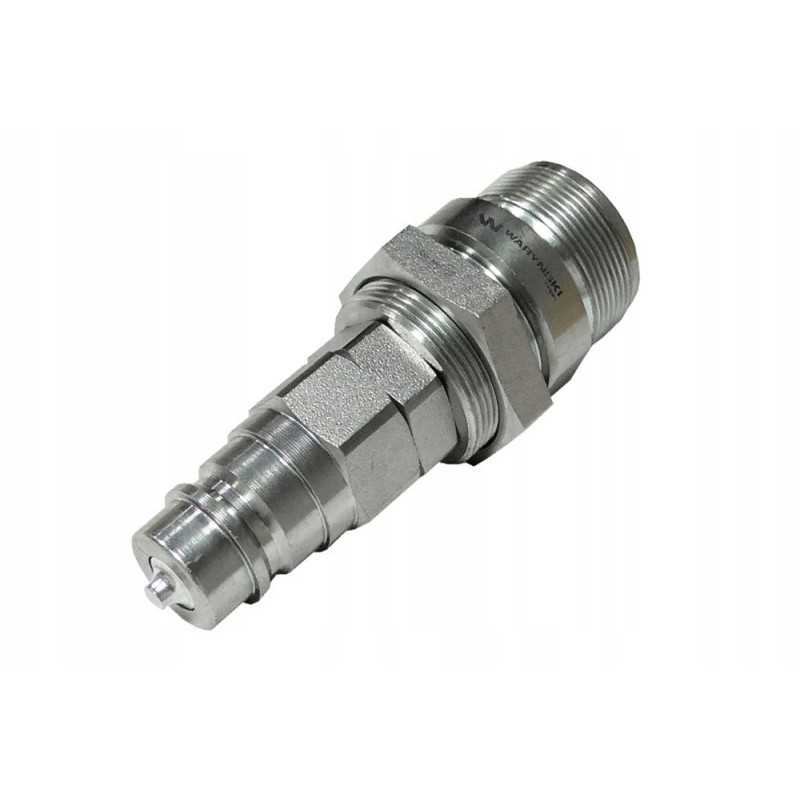

Warynski screwed Euro plug socket reduction socket

REDUCED EURO SOCKET/PLUG, SCREWED, WARYŃSKI REDUCTION. REDUCED EURO SOCKET/PLUG, SCREWED, REDUCED, WARYŃSKI. Reduced Waryński screwed EURO socket/plug - an old-type screwed agricultural socket installed on one side and a EURO plug (ISO-7241-A) installed on the other. The most popular hydraulic reducing valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery. Thanks to the reducing valves, you can easily change the connection to a higher standard of EURO (ISO-7241-A) Waryński hydraulic quick connectors in the standard and Push-Pull versions.

*Parameters:

*Type of socket: Screwed agricultural

*Plug type: EURO (ISO-7241-A)

*Cone - thread: 15L (15m)

*Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits plugs: WRSM22WT, WRSM18WT, 50490030K, 50490030, ZSR6160102, ZSR6M20WTK

*Fits sockets: WIAM14MZ, WIAM16MZ, WIAM16MZL, WIAM18MZ, WIAM18MZL, WIAM22MZ, WIAM22MZL, WIAR12MW, WIAM14MZ-PP, WIAM16MZ-PP, WIAM16MZL-PP, WIAM18MZ-PP, WIAM18MZL-PP, WIAM22MZ -PP, WIAM22MZL-PP, WIAM20MZ -PP, 9100822G, 9100822GL, 9100818G, 9100818GL, 9100816GL, 9100814G, 9100816G, 9100820G

-️ Application:

Waryński twisted EURO plug/socket/plug reduction used in agricultural machinery. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cut) Waryński connectors. ,WRSM22WT

WRSM18WT 50490030K 50490030 ZSR6160102 ZSR6M20WTK ,WIAM14MZ WIAM16MZ WIAM16MZL WIAM18MZ WIAM18MZL WIAM22MZ WIAM22MZL WIAR12MW WIAM14MZ-PP WIAM16MZ-PP WIAM16MZL-PP WI AM18MZ-PP WIAM18MZL-PP WIAM22MZ-PP WIAM22MZL-PP WIAM20MZ-PP 9100822G 9100822GL 9100818G 9100818GL 9100816GL 9100814G 9100816G 9100820G

* Producer: Waryński
