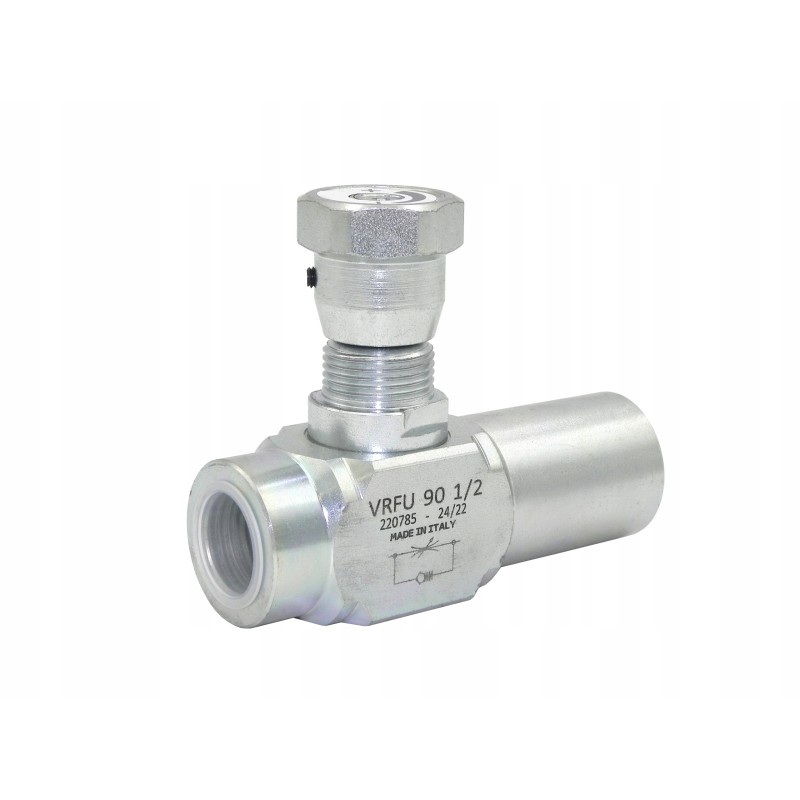

Hydraulic valve throttling 1 side vrfu 1 2 50l

VRFU 1/2' HYDRAULIC VALVE, SINGLE-WAY CHOKE WITH REGULATION Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Principle of operation:

The throttle valve regulates (throttles) the flow in one direction, in the second, however, the flow is always free. The adjusted flow depends on the change in oil pressure in the system. Adjustment is made using a knob, the settings can be secured with a locking screw.

Connection:

The flow from C to V is regulated, from V to C is always free.

Technical data:

Maximum flow: 50 l/min

Number of holes hydraulic connections in the body: 2

Internal threads in the body: 1/2'' [BSP]

Body material: galvanized steel

Permissible maximum pressure: 350bar

Weight: 0.6 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
