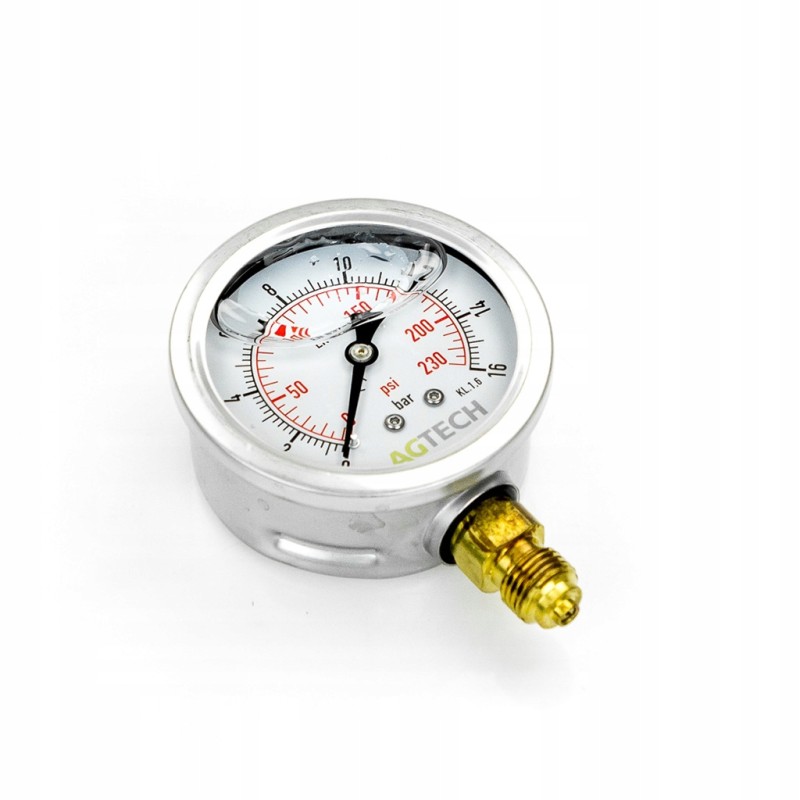

Pressure gauge fi 63 bsp 1 4 dol range 0 16 bar

Pressure gauge Fi 63 Bsp 1/4 Down Range 0-16 Bar QUALITY PROVIDED BY GRANIT PARTS GERMANY

Brand: AGTECH / GRANIT PARTS GERMANY

Article number: 66785000401

Reference number:

Technical parameters:

MANOMETER FI 63 BSP1/4 RANGE 0-160 BAR

Measurement range: 0 - 16 bar

Characteristic features:

- suitable for gaseous media and hydraulic oils that do not attack copper alloys

- thread type: BSP

- housing made of chrome-nickel steel (1.4301)

- plate (window) made of acrylic glass

- filled with glycerin - blood pressure monitor according to EN 837-1

- protection class: IP 65 (protected against access using wire, dustproof, protected against water jet (nozzle) from any angle)

- accuracy Ø 63mm: 1.6

- temperature range - ambient: - 20°C to + 60°C

- temperature range - medium: max. + 60°C

Pitch diameter (mm): 63

Pressure range (bar): 0-16

Connection: G1/4 lower

GRANIT PARTS is a renowned German manufacturer and distributor of agricultural parts for all brands, both Polish and Western.

It has been supplying its products to markets throughout Europe for over 25 years.

Granit Parts is solid GERMAN QUALITY at a REASONABLE PRICE for which

EVERY POLISH FARMER CAN AFFORD.

Choose a proven brand, choose GRANIT PARTS Germany.
