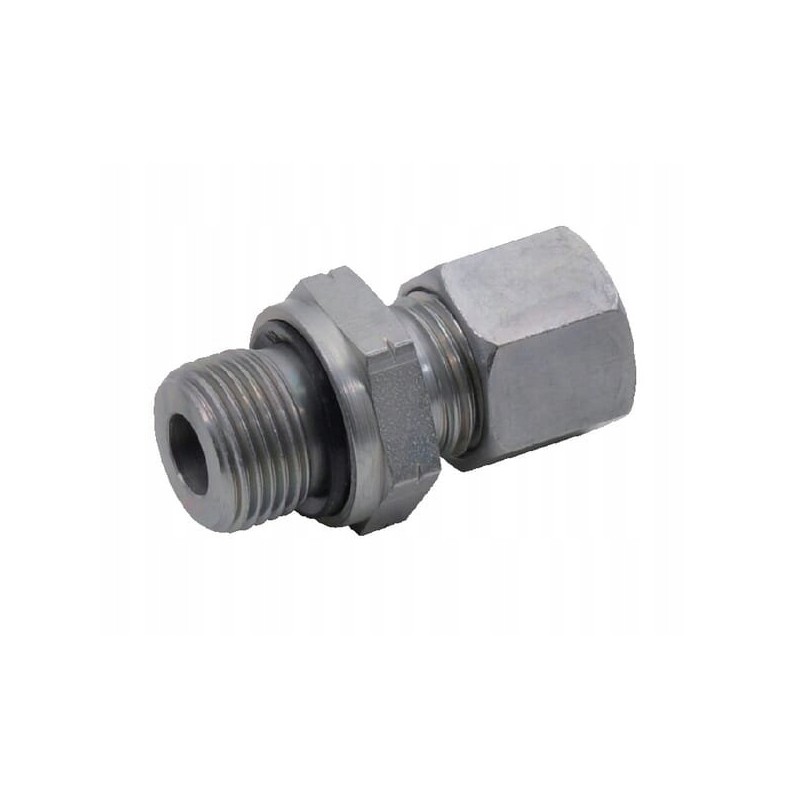

Straight connection with screws and seals m22x1 5 15l r3 8

Straight connection with nut and seal M22x1.5 15L R3/8 Parameters

Part number: GEV15LR38WD

Unit: Piece

Manufacturer: Voss

EAN: 8719607065597

Shape: Straight - 2 sides

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 15 mm

Connector no. 1 thread diameter: M22

Connector thread length: 12 mm

Connector no. thread pitch 1: 1.50 mm

Connector Thread Type: BSP

Connector No. 1 Wrench Size: 24.0 mm

Connector No. 2 Type: Sealing Ring

Type of connector no. 2 - male/female: Male

Thread diameter of connector no. 2: 3/8 inch

Number of turns per inch of thread of connector no. 2: 19

Connection No. 2 thread type: BSP

Wrench size for connector No. 2: 27.0 mm

Pipe diameter: 15 mm

ISO standard: 228

Max working pressure: 400 BAR

Seal material: Nitrile rubber [NBR]

Series: 15L

Dimension from the joint axis to the end of the next joint

28.5 mm

Dimension from the axis of joint no. 2 to the end of the next joint

13.5 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
