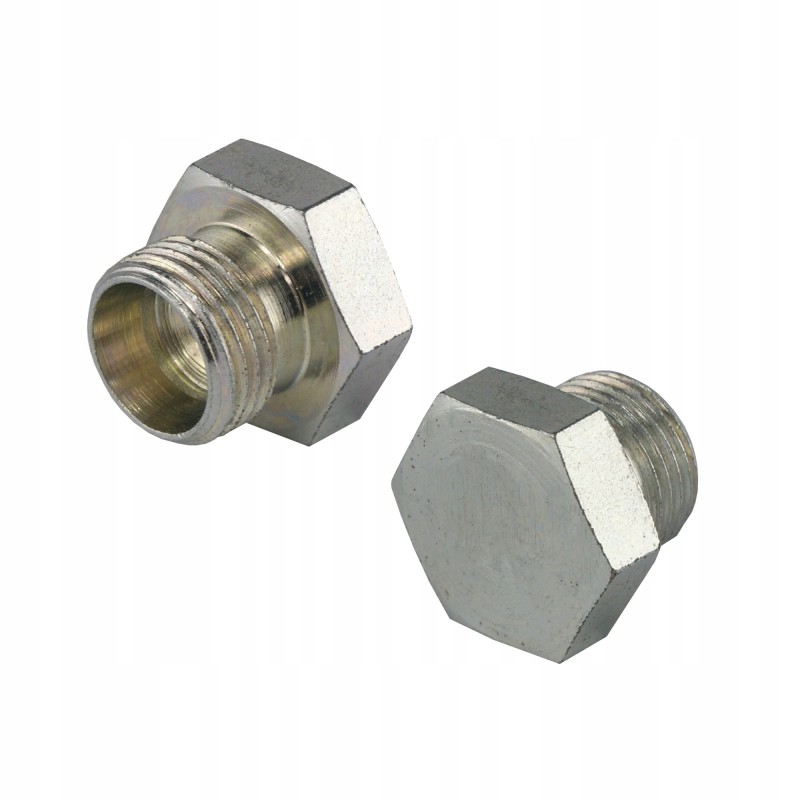

Metric thread plug M16x1 5 for plugging the cable

METRIC PLUG 16x1.5 BLINDINGProduction:

Original product of the Hydrolider brand, symbol: 1.60.59.116

Application:

It is widely used in hydraulic systems in agriculture and horticulture , forestry, construction and broadly understood industry.

The plug is used to plug the ends of hydraulic conduits or other connectors ended with a nut with a conical self-sealing clamp when tightening.

Helpful data:

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14 ,6

Example application:

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Plug with hexagon head, screwed on with a 22 wrench

Recommended fluid type: hydraulic oil.

Thread: external metric 16x1.5

Material:

welded steel, galvanized, corrosion-resistant
