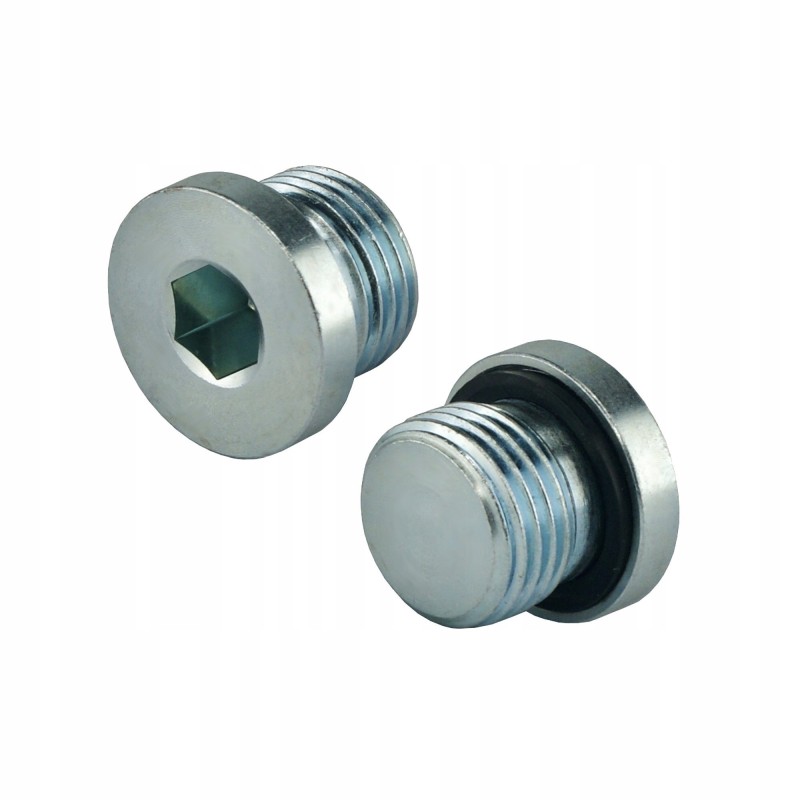

Hydraulic plug with seal thread BSP 3 8

INCH BSP PLUG 3/8' WITH SEALProduction:

Original product of the Hydrolider brand, symbol: 1.60.59.106

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The plug is used to plug threaded holes in the bodies of pumps, distributors, actuators, tanks and other power hydraulics elements.

Helpful data:

BSP 3/8' thread diameter measured with a caliper:

Outer diameter [mm]: 16.3 - 16.6

Inner diameter [mm]: 14.9 - 15.4

Technical data:

Plug with round head, screwed on with a hexagonal 'Allen' key, standardized light version with ED rubber seal.

Recommended fluid type: hydraulic oil.

Thread: external inch BSP 3/8'

Allen wrench: 8mm hex

Material:

weldable steel, galvanized, corrosion-resistant
