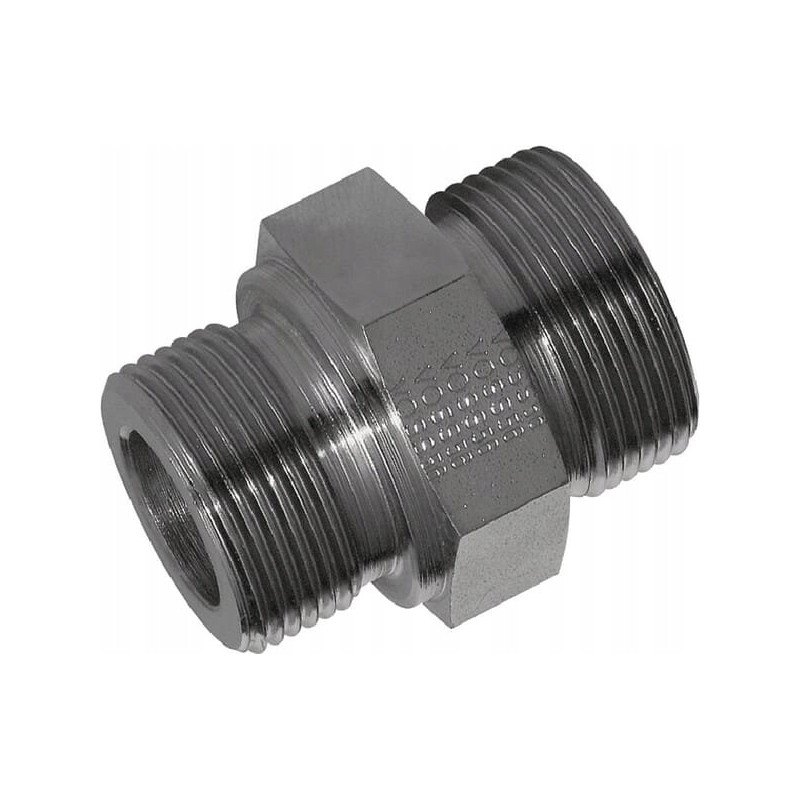

Straight connection 1 4 bsp m12x1 5 6l

Straight connection 1/4' BSP - M12x1.5 6L Parameters

Part number: GES6LR14

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides of connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 6 mm

Connector No. 1 thread diameter: M12

Connector thread length: 12 mm

Connector No. 1 thread pitch: 1.50 mm

Connector Thread Type: BSP

Connector #1 Wrench Size: 18mm

Connector #1 Wrench Size: 19.0mm

Connector #2 Type: Thread< p>

Type of connector no. 2 - male/female: Male

Thread diameter of connector no. 2: 1/4 inch

Number of turns per inch of thread of connector no. 2: 19

Connection No. 2 thread type: BSP

Wrench size for connector No. 2: 14.0 mm

Pipe diameter: 6 mm

Standard ISO: 228

Inner diameter: 4 mm

Length: 28 mm

Max working pressure: 400 BAR

Series: L

Max tightening torque: 55 N m

Dimension from the axis of the connector to the end of the next connector

23.5 mm

Dimension from the axis of connector no. 2 to the end of the next connector

9 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
