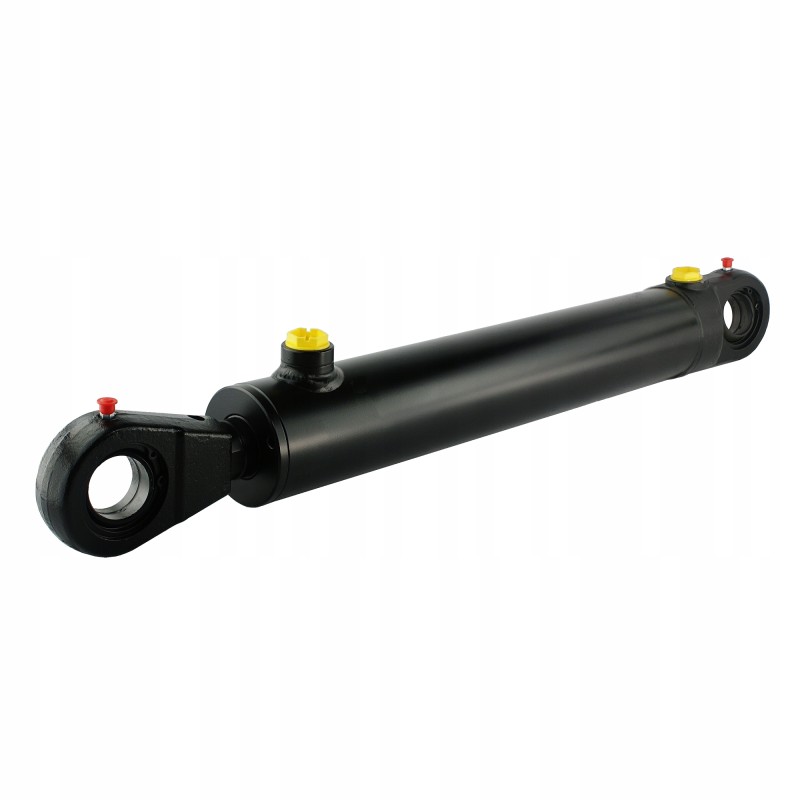

Hydraulic piston cylinder 80 45 stroke 200mm l 543

DOUBLE-ACTING HYDRAULIC CYLINDER, COMPLETE WITH EARS ON SOCKET BEARINGSProduction:

Original product of the Hydrolider brand, manufacturer's symbol: 1.31.60.001, CJ2F 80/45/200 U40

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The actuator is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclops, loaders HDS, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you see in the photo are only the metal elements from which it is built there is an actuator. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Mounting the head from the rod side: screwed on

Type of stuffing box (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Piston (pipe) outer diameter: 92mm

Piston (pipe) inner diameter: 80mm

Piston rod (rod) diameter: 45mm

Diameter of holes for pins: 40mm

Stroke (working movement) of the piston rod: 200mm

Length at rest measured in the axes of holes: 543mm

Internal threads for connections: M27x2

Operating parameters:

Maximum allowable operating pressure: 250 bar

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change oil pressure in the hydraulic system (photo):
