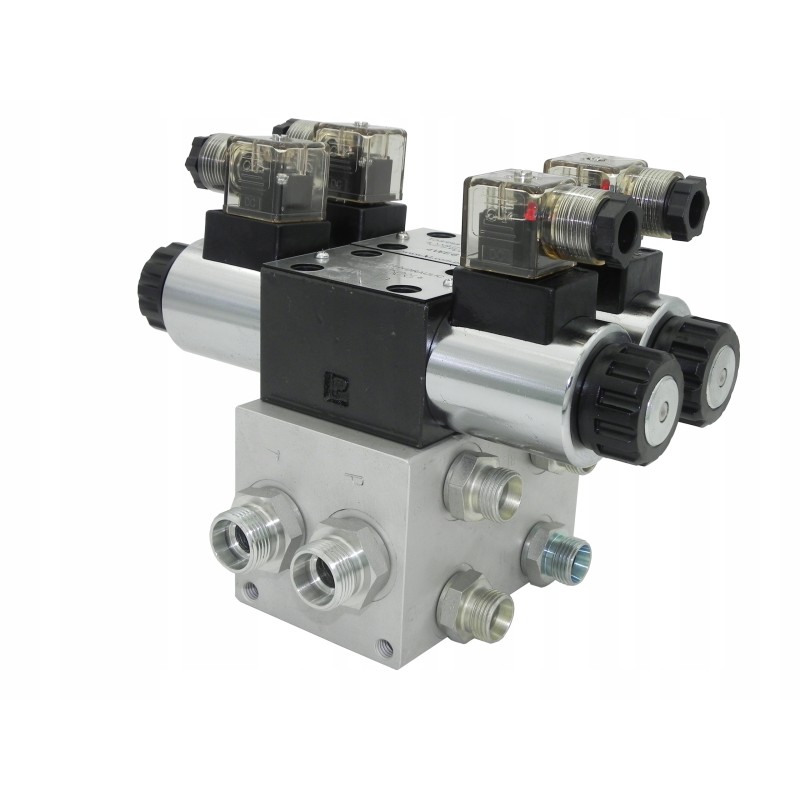

Hydro cetop distributor 2 sec 60l electric 230v

HYDRAULIC DISTRIBUTOR 2 SEC CETOP 03 NG6 ELECTRICALLY CONTROLLED 230V!!! ATTENTION !!! IN A DISTRIBUTOR WITHOUT A RELIEF, THERE IS NO POSSIBILITY FOR FREE FLOW OF OIL THROUGH THE PLATE!!!

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines, such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other devices with a hydraulic system.

Technical data:

The set includes a set of connections with an M18x1.5 output and a set of 230V AC electrical plugs with light-emitting diodes.

Recommended oil flow in the system: 0 - 60 l/min.

Example control: double-acting actuator.

Material:

Distributor body and steel slider, electric plugs and plastic tightening nuts, block, depending on the batch, steel or aluminum.

Current:

Power supply AC 230V

Electrical plugs have diodes that light up when current is applied to the coil .

Connection:

Supply from the pump (P1, P2): BSP 1/2'' internal thread

Return to the tank (T1, T2): BSP internal thread 1/2''

Sections (A1, A2, B1, B2): BSP internal thread 3/8''

Series connection (N): BSP internal thread 3/8'

Pressure range:

Maximum working pressure: 200 bar

Overflow valve factory set to 175Bar

Possibility of self-adjustment , full turn change by 30Bar.

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

The auction concerns the distributor described above

It is possible to configure the solenoid valve in a different configuration.
