Hydraulic plug with seal BSP thread 3 4

INCH BSP PLUG 3/4' WITH SEALProduction:

Original product of the Hydrolider brand, symbol: 1.60.59.112

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The plug is used to plug threaded holes in the bodies of pumps, distributors, actuators, tanks and other power hydraulics elements.

Helpful data:

BSP 3/4' thread diameter measured with a caliper:

Outer diameter [mm]: 26.1 - 26.4

Inner diameter [mm]: 24.1 - 24.5

Technical data:

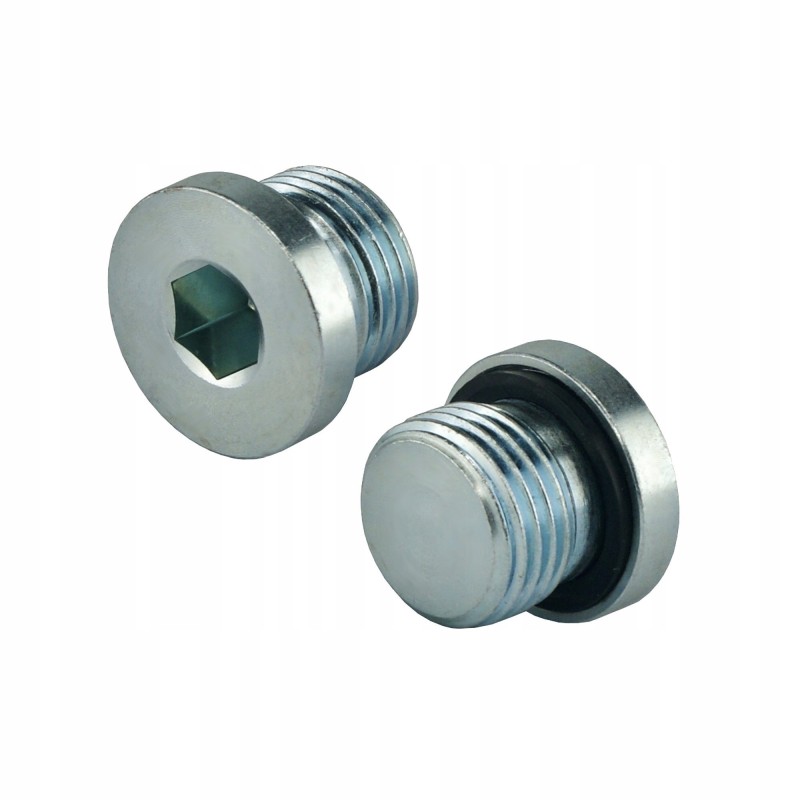

Plug with round head, screwed on with a hexagonal 'Allen' key, standardized light version with ED rubber seal.

Recommended fluid type: hydraulic oil.

Thread: external inch BSP 3/4'

Allen wrench: 12mm hexagon

Material:

weldable steel, galvanized, corrosion-resistant
