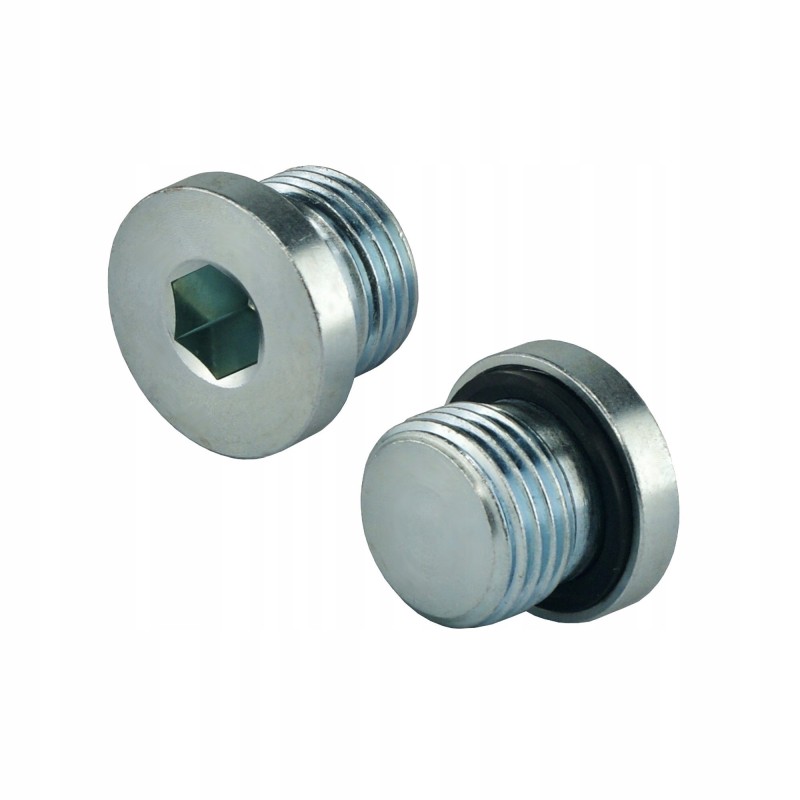

Hydraulic plug with seal thread 14x1 5

METRIC PLUG 14x1.5 WITH SEALProduction:

Original product of the Hydrolider brand, symbol: 1.60.59.003

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The plug is used to plug threaded holes in the bodies of pumps, distributors, actuators, tanks and other power hydraulics elements.

Helpful data:

M14x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 13.6 - 13.9

Inner diameter [mm]: 12.2 - 12.6

Technical data:

Plug with a round head, screwed on with a hexagonal 'Allen' key, standardized light version with ED rubber seal.

Recommended type liquid: hydraulic oil.

Thread: external metric 14x1.5

Allen key: 6mm hexagon

Material:

weldable steel, galvanized, corrosion-resistant
