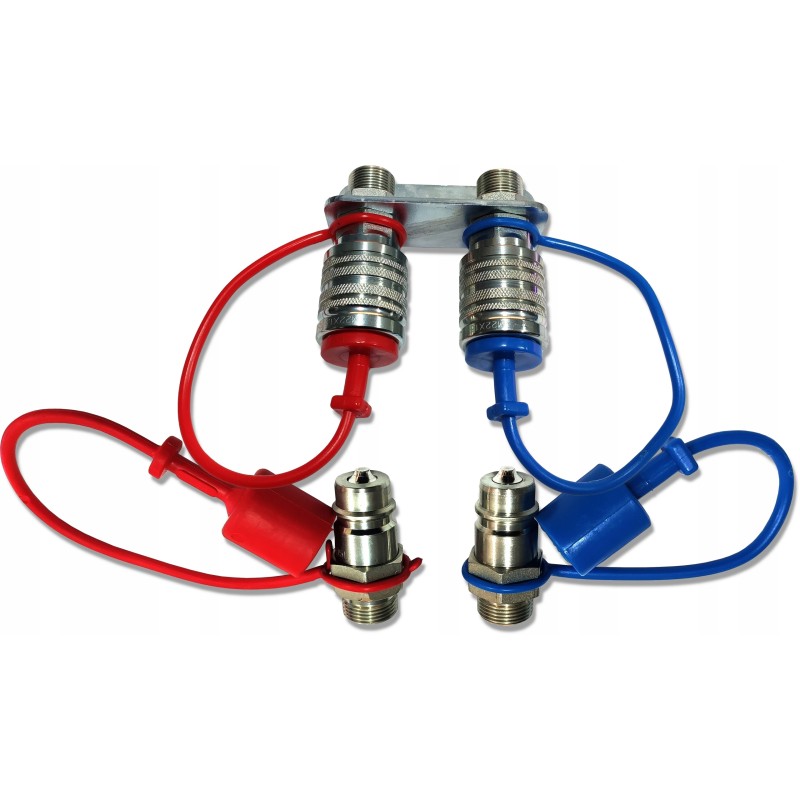

Set of quick connectors, Euro M22 plug sockets

SET OF BOARD (MOUNTING) AND QUICK CONNECTORS 2x SOCKETS AND 2x EURO M22 PLUGS WITH COVERSSKRAW-MET CODE: [8191]It is used when we want to improve the connection and disconnection of bulkhead quick connectors (sockets - plugs) in various tractor components.

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

The mounting works perfectly in hydraulically powered machines and devices. The board is screwed on with two screws, e.g. in the TUR frame. Welding is also possible, but only if appropriate occupational health and safety rules are observed - because the zinc oxide escaping during welding is harmful to health.

In our other auctions you will also find non-galvanized (raw) boards - double and quadruple with sets of quick connectors and covers. In consists of: Board with two holes

2x LONG M22 socket

2x M22 plug

Red socket cover

Red plug cover

Blue socket cover

Blue plug cover

Sheet intended for mounting quick connectors of bulkhead sockets and plugs with metric threads: M14

M16

M18

M22

And inch: G3/8'

G1/2'

Technical specification: HYDRAULIC QUICK CONNECTOR EURO PLUG THREAD 22x1.5 Application: Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system .

Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Specification: Quick connector type: euro ISO standard

Quick connector type: plug

Thread type: short, external

Material: galvanized steel

HYDRAULIC QUICK CONNECTOR LONG EURO SOCKET THREAD 22x1.5 Application: Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. tractor.

Specification: Quick coupler type: euro ISO standard

Quick coupler type: socket

Thread type: long, external

Material: galvanized steel

Weight: 0.30 kg
