Distributor connections 2s p40 18 18 hydrolider

SET OF CONNECTIONS FOR 2-SECTION DIVIDER P40L/min BADESTNOSTProduction:

Original product of the Hydrolider brand, symbol: 1.10.70.302.5

Application:

They are widely used in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connections enable the connection of the distributor with hydraulic lines.

Technical data:

1 piece = 1 set

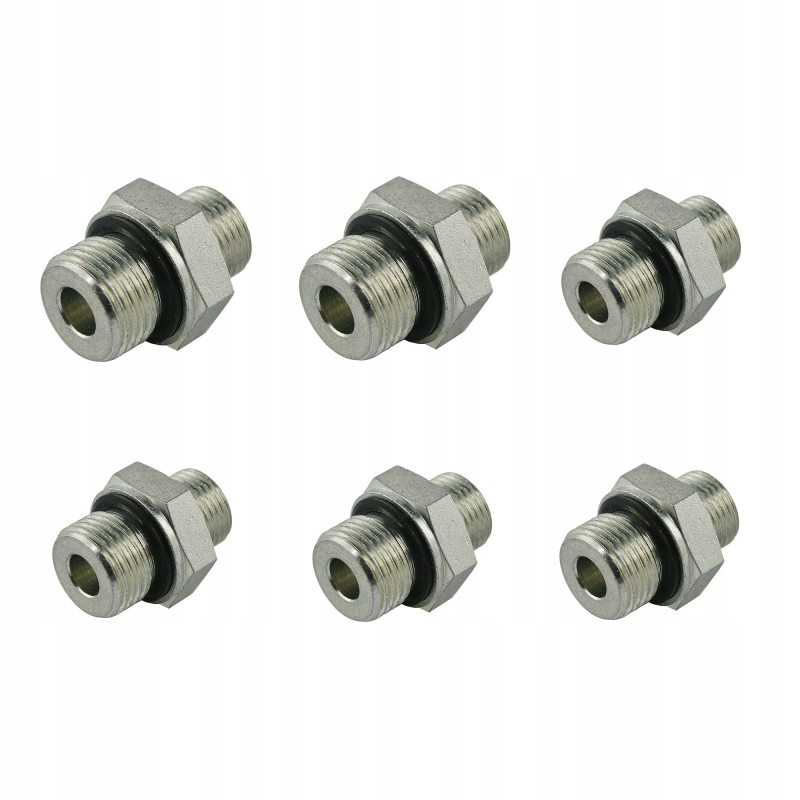

The set includes 6 connections, one for supply and return and 4 for sections. All connections in the set at the thread on the distributor side have a rubber seal. There is no need to add additional seals here.

Threads:

CONNECTION MOUNTED ON THE POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'< p>

Thread on the hydraulic line side: M18x1.5

---------------------------- -------------------------------------------------- -------

CONNECTION MOUNTED ON THE RETURN:

Thread on the side of the distributor, inch BSP: 1/2'

Thread on the side of the hydraulic conduit: M18x1.5

---------------------------------------- ---------------------------------------------

CONNECTIONS MOUNTED ON THE SECTION:

Thread on the distributor side, inch BSP: 3/8'

Thread on the hydraulic line side: M18x1.5

-- -------------------------------------------------- ---------------------------------

Material:

bodies : corrosion-resistant galvanized steel

sealing: rubber

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

------------ -------------------------------------------------- -----------------------

BSP 1/2' thread diameter measured with a caliper:

Outer diameter [ mm]: 20.5- 20.9

Inner diameter [mm]: 18.6 - 19

--------------- -------------------------------------------------- --------------------

Thread diameter 3/8' measured with a caliper:

Outer diameter [mm]: 16 .3 - 16.6

Inner diameter [mm]: 14.9 - 15.4
