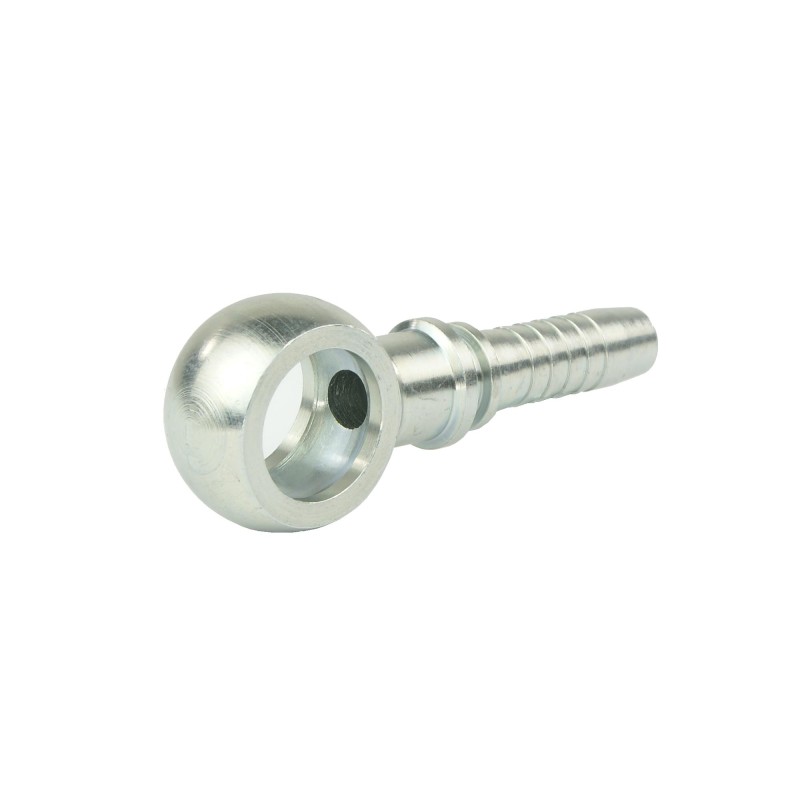

Rnm forging dn10 1 2sn fi18 h 15 hydrolider

HYDRAULIC FITTINGSTRAIGHT RNR FI 18mm FOR HYDRAULIC HOSE 1SN / 2SN DN10Production:

Hydrolider, symbol: 4.13.10.018

Application:

Fitting used in the production of hydraulic hoses, has wide use in agriculture, industry and forestry. Designed to be attached to all hoses from our offer:

Agriflex, Semperit, Stomil from the DN10 group with single and double braiding. Fits sleeves from the DN10 group with the marking 1SN and 2SN.

Technical data:

Straight fitting, tip with an eye for a 18mm screw. Light version, body height 15mm. Made according to the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm Chromate passivation type A, free of chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN10 1SN, DN10 2SN or other with an internal diameter of 10mm

Made in Poland for Agricola Hydraulic Component
