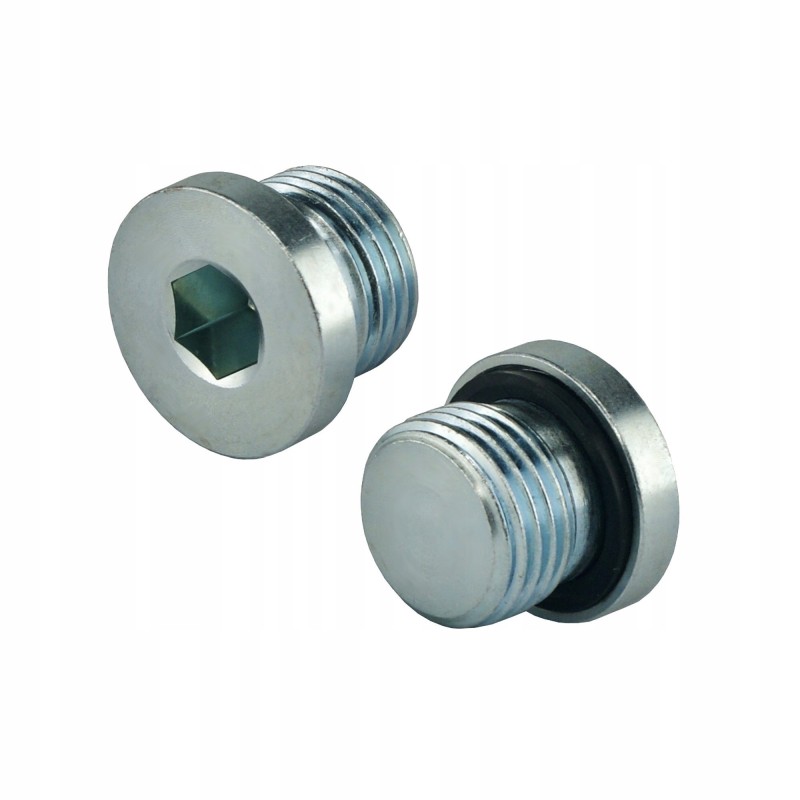

Hydraulic plug with seal thread 22x1 5

METRIC PLUG 22x1.5 WITH SEALProduction:

Original product of the Hydrolider brand, symbol: 1.60.59.015

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The plug is used to plug threaded holes in the bodies of pumps, distributors, actuators, tanks and other power hydraulics elements.

Helpful data:

M22x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

Technical data:

Plug with round head, screwed on with a hexagonal 'Allen' key, standardized light version with ED rubber seal.

Recommended type liquid: hydraulic oil.

Thread: external metric 22x1.5

Allen key: hexagonal 10mm

Material:

weldable steel, galvanized, corrosion-resistant
